If you are using an external ibaPDA client for the configuration, the ibaPDA client and ibaDAQ must be connected through the network.

1. Start ibaPDA on the external ibaPDA client.

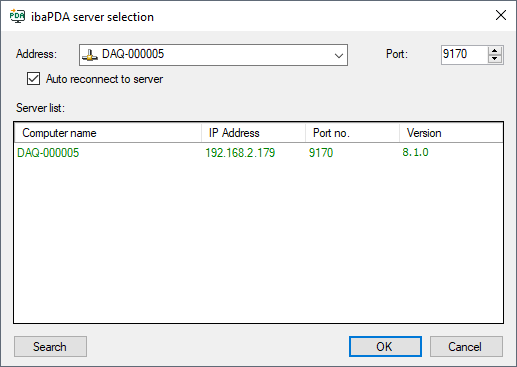

2. Select ibaDAQ as ibaPDA server.

   To do this, click on the   button in the toolbar or select Configuration - Select server... from the menu.









Address

Enter the name or the IP address of the ibaDAQ device in the Address field. The name is composed of the DAQ-<six-digit serial number>. The serial number is found on the device name plate.

Example: DAQ-000005.

Port-no.

The port number is assigned automatically.

<Search>

The button starts the search for active ibaPDA servers in the network. If the ibaPDA client and ibaDAQ are located in the same network, the device should be displayed in the list of servers. The device can be selected either by double-clicking the device or by selecting it and subsequently clicking <OK>.

After the connection has been established, the device is displayed in the ibaPDA signal tree.

For further configuration, open the I/O manager, see Adding I/O modules.
