Proceed as follows to mount ibaDAQ on a module rack.

1. Mount the backplane panel on an appropriate construction.

2. Connect the grounding.

   You can find a description of how to attach the grounding for the different mounting systems here:

   • Mounting with backplane panel, see Backplane panels

   • Mounting systems for central unit only, see Mounting system for central unit

   • Mounting systems for ibaPADU-S-B4S, see Mounting systems for ibaPADU-S-B4S

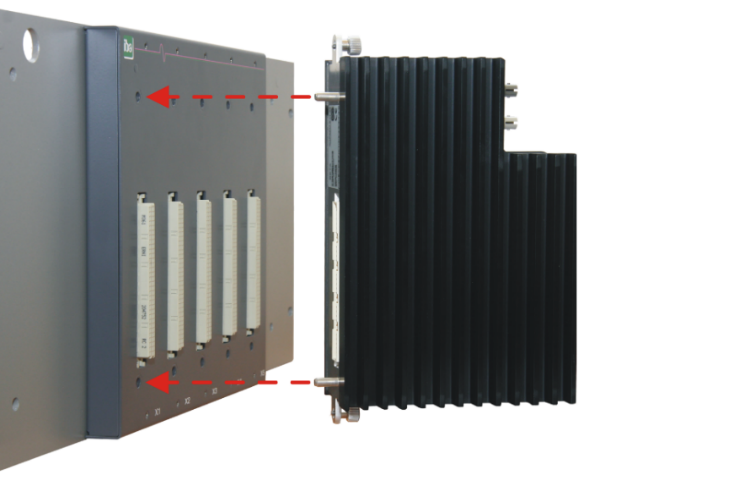

3. Plug the device into the left slot.

   Make sure that the guide bolts on the rear side of the device are inserted into the corresponding holes on the backplane.

4. Press the device firmly against the backplane and secure it with the fixing screws.

Note
	Always screw the device and the modules tightly. Plugging or unplugging the connectors for the inputs/outputs can otherwise cause damage.

Note
	The ibaMBox mobile measurement system is based on the iba modular system that is integrated in a compact, rugged aluminum case. The central unit and the I/O modules are already installed in ibaMBox according to the order. ibaMBox is delivered preconfigured.
