Adding I/O modules

Start ibaPDA and open the I/O Manager.

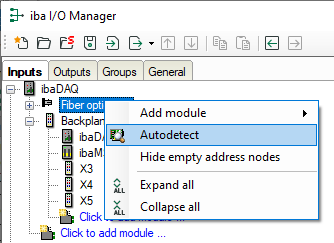

Select the "Backplane bus" link in the I/O Manager.

Right-click the link to open a submenu. Select Autodetect.

If ibaPDA detects the device automatically, the device and the connected modules are listed in the module tree.

If ibaPDA does not detect the modules automatically, you can add the modules manually.

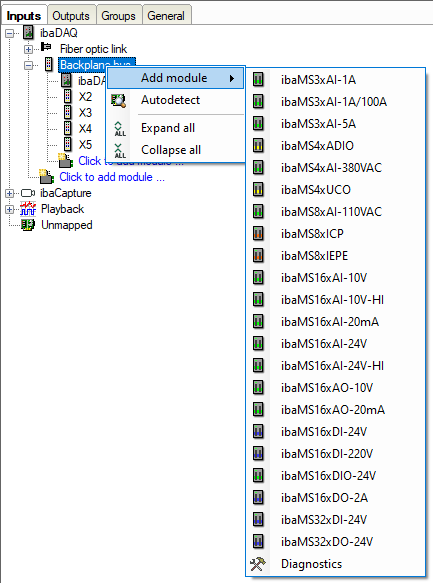

Right-click the "Backplane bus" link.

Select Add module.

Select the desired modules from the list.

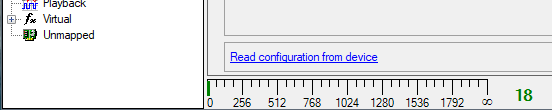

Optionally, an existing configuration can be read from the device by clicking Read configuration from device on the General tab.

The connected modules are detected automatically and displayed in the module tree.

Configure ibaDAQ and the modules, e. g. assign a name, debouncing, etc.

See Backplane bus – General tab.

To apply the configuration, click <Apply> or <OK>.
