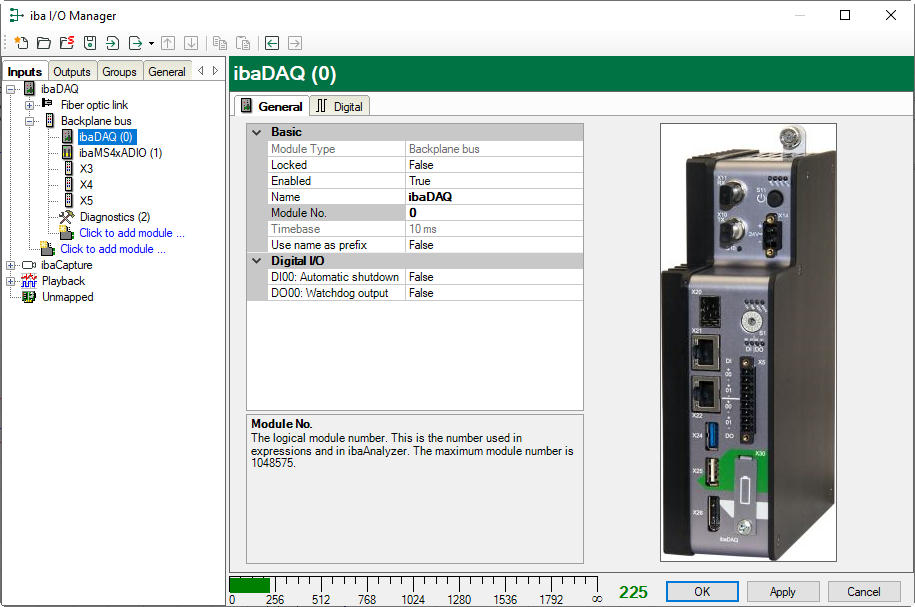

In the General tab, make the basic settings and settings for automatic shutdown and the watchdog function for the "ibaDAQ" module.

Basic settings

Module type, Locked, Enabled, Name, Timebase

See chapter Basic settings.

Module no.

Reference number for clearly referencing of signals, e.g. in expressions and ibaAnalyzer.

Digital I/O

DI00: Automatic shutdown

TRUE: ibaDAQ is shut down automatically if DI00 is set.

DO00: Watchdog output

TRUE: If ibaPDA cannot read data from the ibaDAQ hardware during acquisition, DO00 is set.
