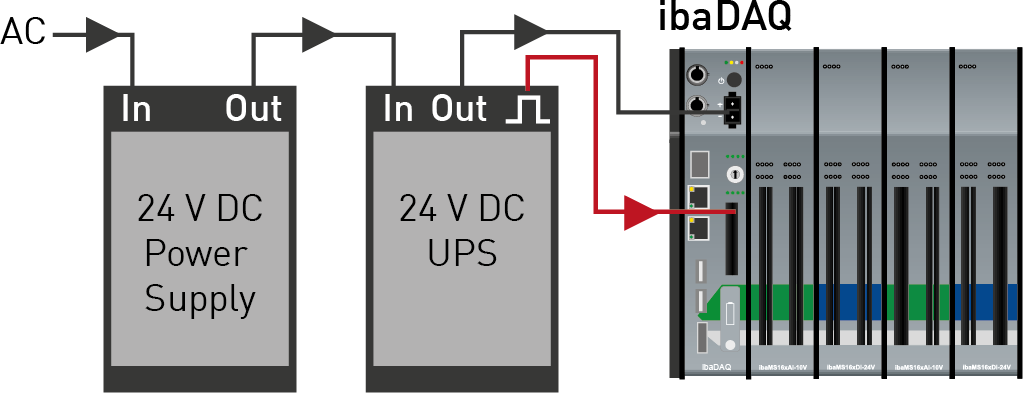

In order to secure an optimal operation, it is recommended to buffer the power supply of the ibaDAQ system via an uninterruptible power supply (UPS) with additional digital output. For this purpose, the digital output of the UPS serves as signal for securely shutting down the ibaDAQ operating system.

The UPS should be designed in such a way that the system is buffered for at least 5 minutes. The digital input DI00 of the ibaDAQ device needs to be configured appropriately for this function in ibaPDA.

See also ibaDAQ – General tab.
