An external iba device can be connected to the FO input and output for measurement data acquisition.

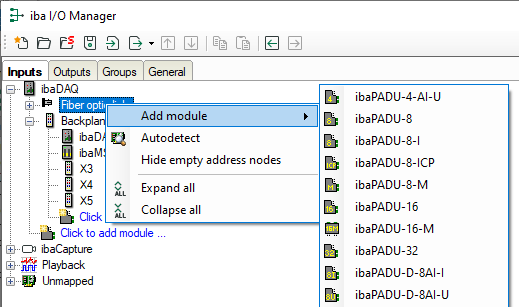

To integrate the device in ibaPDA, right-click the link "Fiber optic link" and select Autodetect. The device and the used ibaNet protocol will be automatically detected and displayed in the module tree.

Alternatively, the device can be manually added. Select "Add module" in the context menu and then the corresponding device.

For further information regarding the configuration of the external iba device, please refer to the corresponding device documentation.
