For the report to be created in the required form you should upload the corresponding report template from ibaCMC.

The file containing the report template of the status report can be found in the following folder (standard installation): C:\ProgramFiles\iba\ibaCMC\Server\appData\ssrs\StatusReport

Upload the ibaCMC report

If not done yet, open the previously created folder (here: ibaCMC) where the data source is located. Click on Upload in the menu bar, navigate to the above mentioned folder in the file browser and select the file StatusReport.rdl.

Link the report and the data source

Open the three-dot menu on the report and select Manage in the context menu.

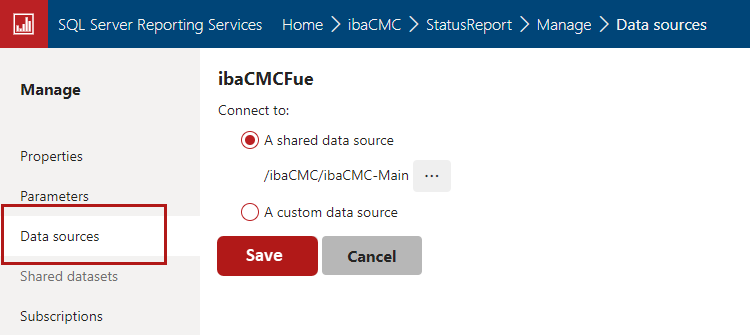

Click on Data sources in the Manage area and select the desired data source.



Adjust the displayed parameters

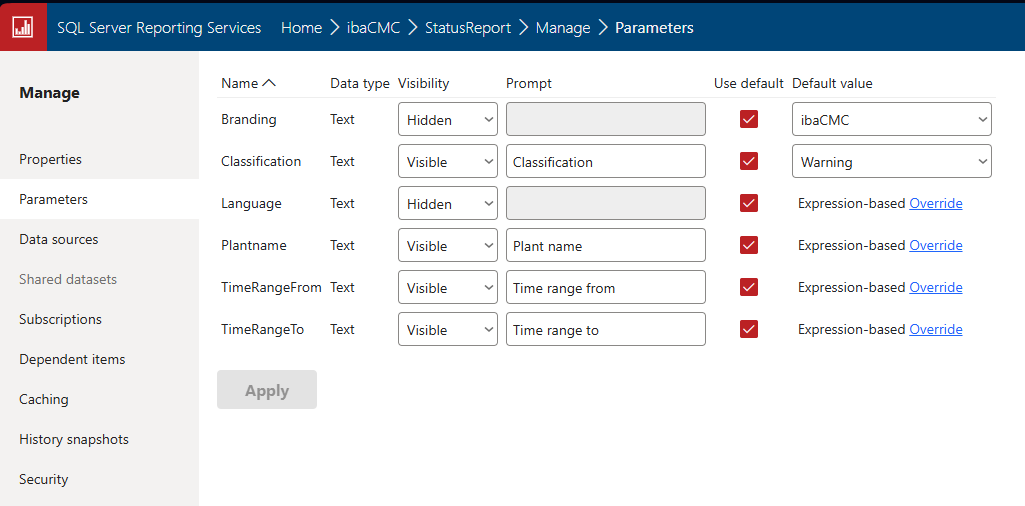

Click on Parameters in the Manage area to adjust the displayed parameters, if necessary. These parameters match those in ibaCMC.
