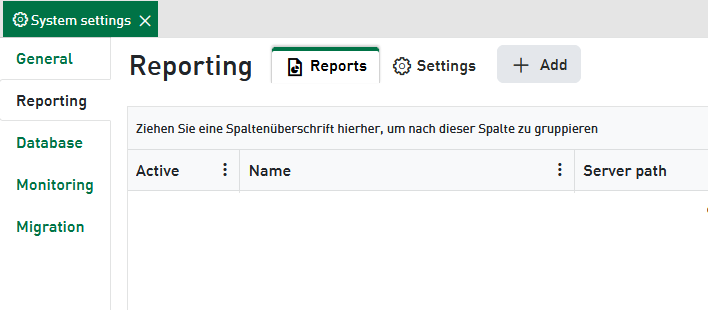

In the next step add a new report in the Reports tab.

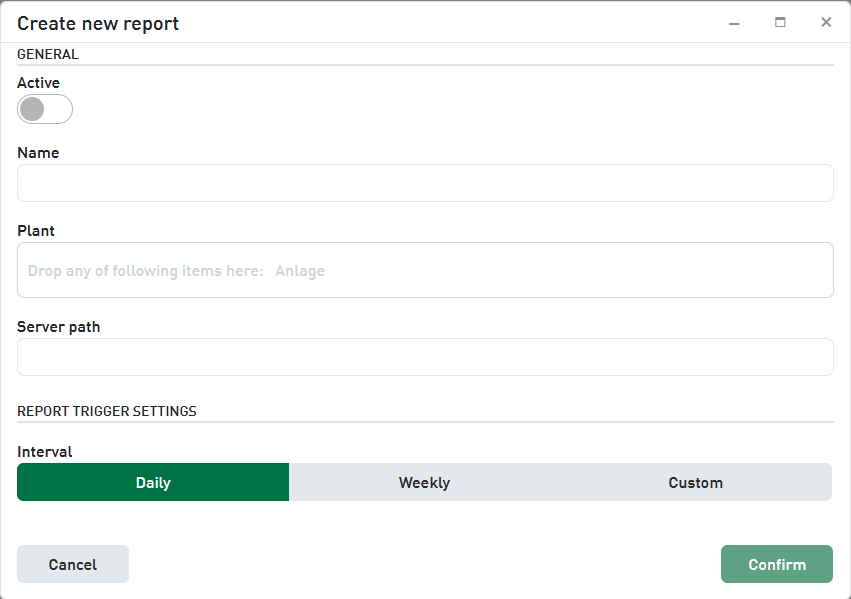

The Create new report dialog box opens.

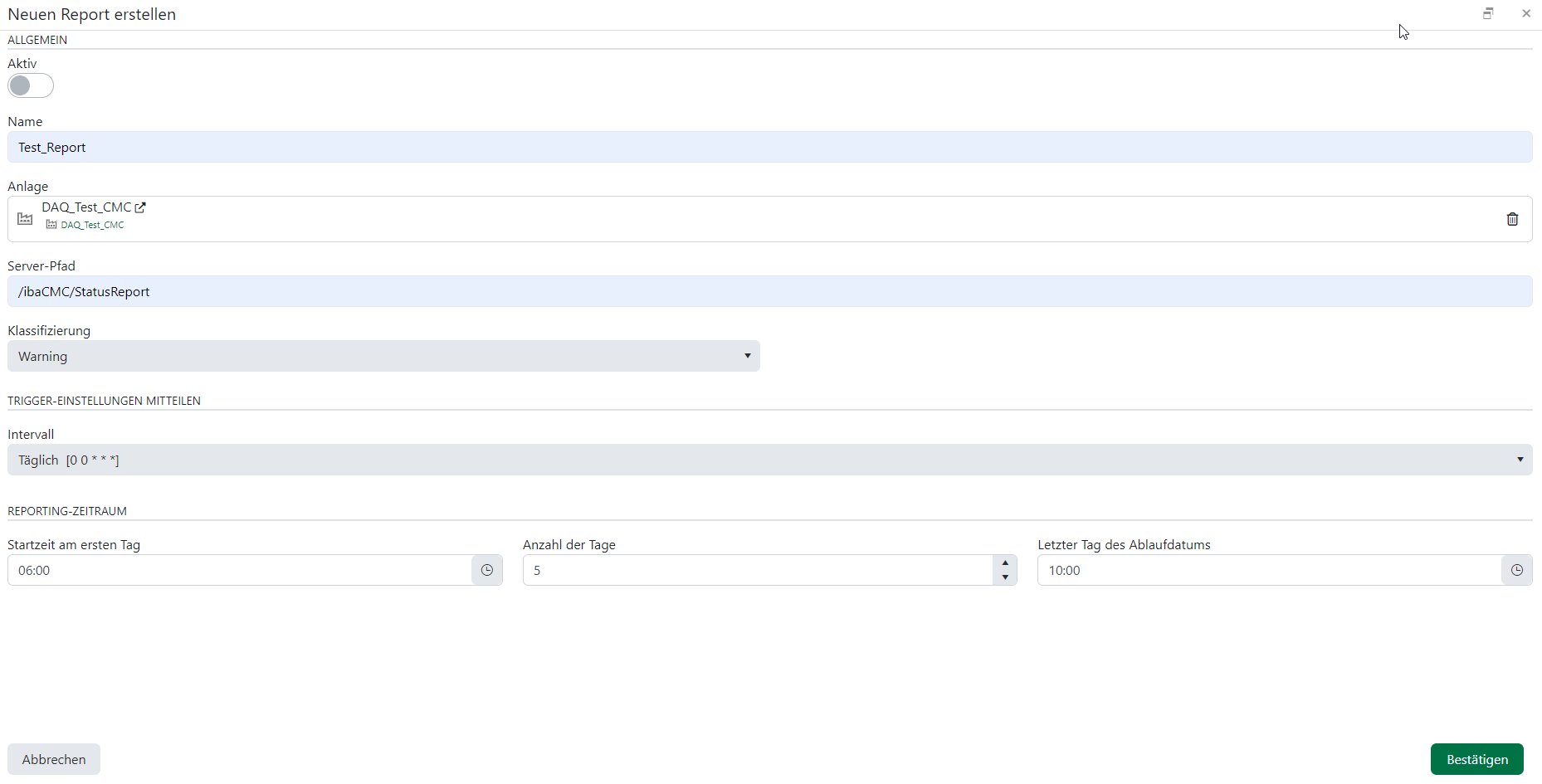

Configure the settings as following:

Name

Enter a meaningful name for the report here.

Plant

Drag a plant from the plant tree into this field in order to assign it to the report.

You can create multiple reports for each configured plant in ibaCMC.

Server path

Enter the server path from the report server.

Format (example): /ibaCMC/StatusReport

Classification

Select the classification for the report here. The classification determines the threshold status for messages in the report. If you choose the classification “Alarm”, for example, then only messages with status “Alarm” and “Critical” will be considered for the report.

Trigger settings

The trigger settings determine when a report will be executed. You can choose out of predefined intervals or define your own interval (Custom).

Reporting period

Set start time, duration and end time for the report.

Finally, click on <Confirm> to save the settings.
