Process signal modules serve for linking ibaPDA signals to ibaCMC. Here, you define the process signals and assign them to the source signals from ibaPDA.

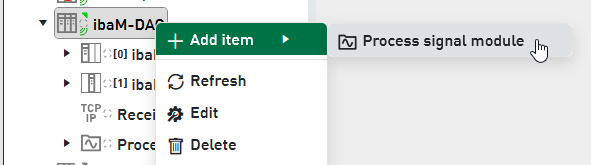

To add a process signal module make a right-click on the CM device (ibaDAQ or ibaM-DAQ) in the plant tree and select Add item - Process signal module.

A dialog window Add process signal module opens for entering Name and Timebase. Enter a module name and define the timebase for sampling the signals in the module.

This timebase should be equal or higher than the timebase used by ibaPDA for sampling the signals. Default is 10 ms.

After the module has been created, it opens for further configuration in the asset configuration.

General tab

On this tab you’ll find the common information like ID, order name and comment. Furthermore, you can enable and disable the module here.

Signals tab

On this tab you configure the process signals, which is described in the following chapter.
