Aggregate groups must be added to the plant tree below a plant in the hierarchy.

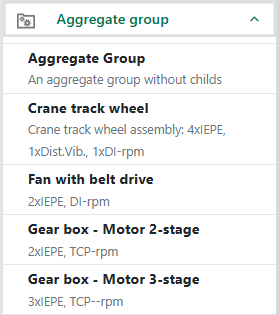

The following figure shows an extract from the available items in the aggregate group from the component library.

You can either use a blank template called Aggregate Group or one that already contains data, e.g. Gearbox - Motor 2 stage. In general, it is always advantageous to select the template that is as close as possible to the actual configuration to keep the amount of adjustment required to a minimum.

Settings for an aggregate group in the detail window

General

ID

This value is generated automatically by the database and cannot be changed.

Order

This value indicates the order of the display within the same level of the plant tree.

Name

The name of the asset (e.g. plant, aggregate group, aggregate, etc.) can be changed here.

Comment

The Comment field is used to enter comments about an asset. The input field can be enlarged by dragging (bottom right).
