For each logbook entry there is a detail view.

You have the following choices to access the detail view:

• Logbook window: Click the entry in the list or table

• Signal analysis: Click the entry in the Logbook tab

In the detail view, the list of log entries continues to appear on the left side in condensed form (if the browser window is large enough). The right side displays the details for the selected entry.

In the detail view, you will find all the information about the entry, as well as its change history and—if available—notes.

Here, you can also make changes to the entry. To do so, click the button with the pencil icon in the header bar.

You can now edit all the information, such as changing the status or adding to the description. When you exit the dialog by clicking <Confirm>, the change will be saved in the history.

If there are already notes in the logbook entry, you can also edit or delete them individually.

Logbook entries ceated by signal analysis

When a log entry is created based on the signal analysis, the active tiles from the signal analysis are also saved as an image file. In addition, a link to the relevant analysis is embedded in the log entry above the graph.

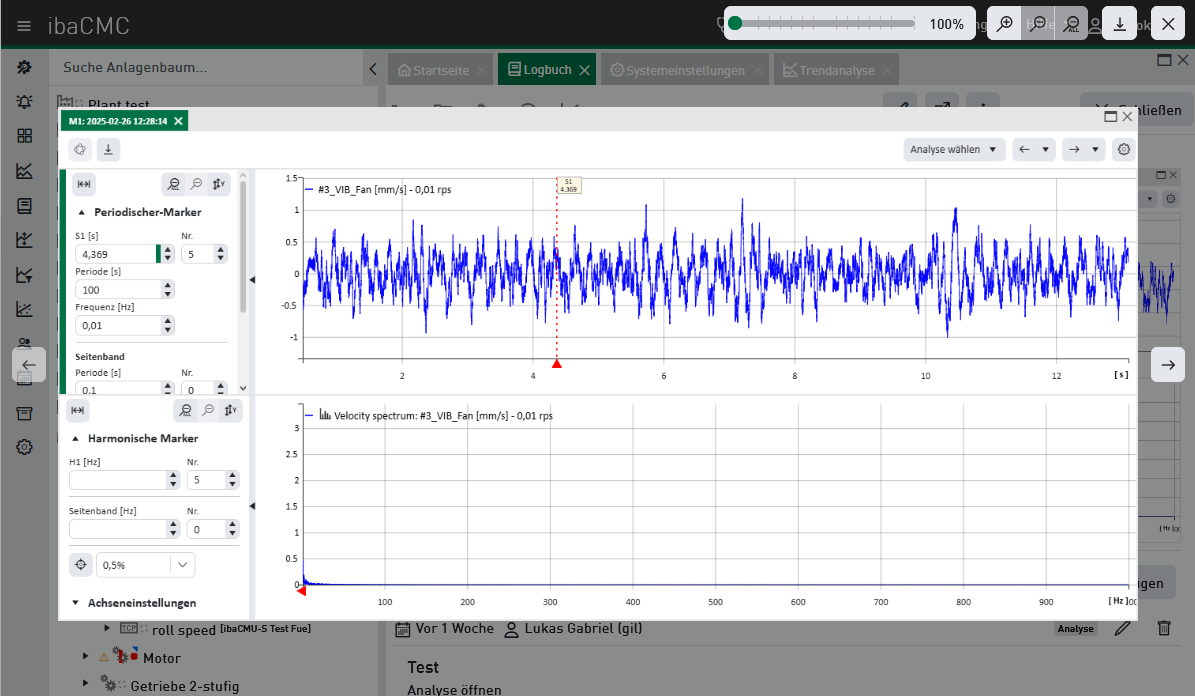

A built-in image viewer helps you view the embedded image. Click on the image in the entry, and it will be displayed enlarged in the image viewer. From there, you can zoom in further and download the image.

If there are multiple images in the entry, you can use the arrow keys and buttons to switch between them.
