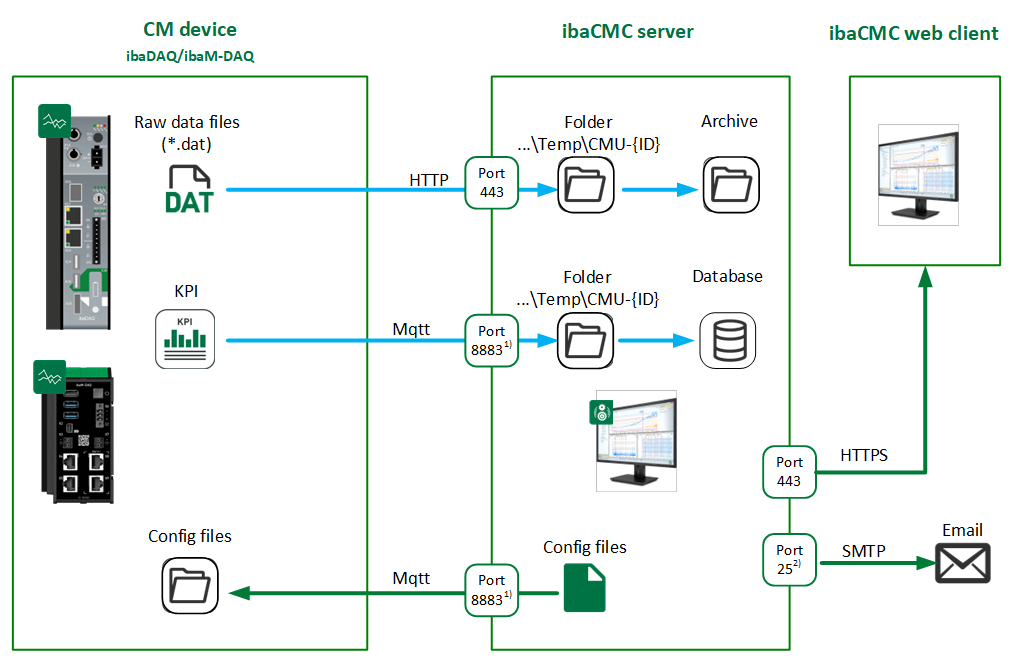

The following figure shows the essential data exchange between ibaCMC and the CM device (CMU). Further below, you'll find information about the ports opened and used by ibaCMC.
1) Default port: 8883 (TLS), alternative port: 1883 (unsave)
2) Default port: 25, alternative port: 465 (TLS)
Ports opened by ibaCMC
|
Interface |
Port / Port range |
Protocol |
Purpose |
Configurable |
|---|---|---|---|---|
|
MQTT Broker |
1883 8883 (default) |
TCP TCP |
Communication with ibaPDA |
yes (TLS) |
|
Traces |
16461 |
UDP |
Debug traces |
yes |
|
Web interface |
80 443 |
HTTP HTTPS |
Connecting a web browser with ibaCMC web client |
yes |
|
|
25 (deault) 465 |
TCP TCP |
yes (TLS) |
Configuration and modification of ports by editing appsettings.json file.
