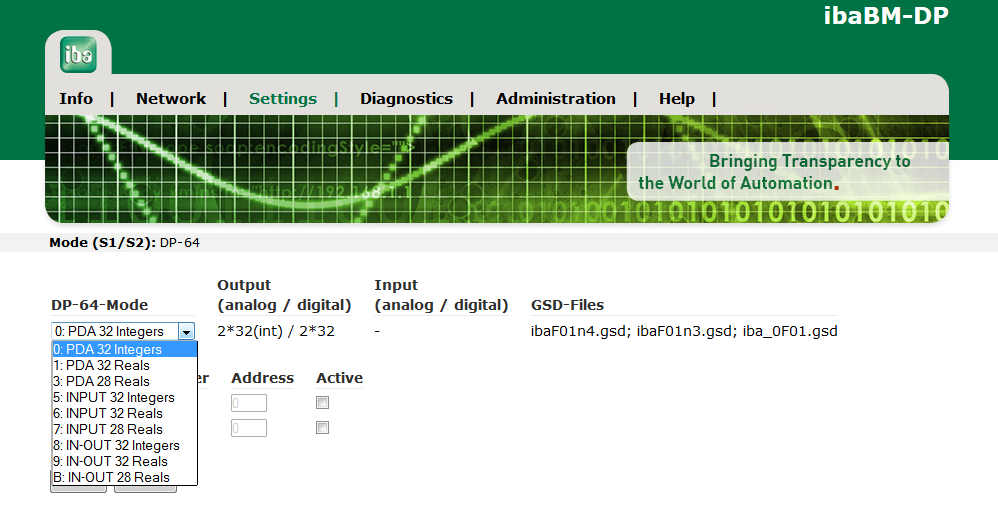

The following figure shows the Settings page with the 3Mbit compatibility mode (DP-64 mode).

In this mode, further settings must be made on the Settings page.

Select the desired operating mode in the DP-64-Mode selection list. The mode names correspond to those described in chapter Operating modes overview.

Make sure that the two slaves are assigned to the correct bus line (bus 0 – connector X40, bus 1 – connector X41). Enter the slave address for each slave, as they are given in DP project engineering. The allowed address range reaches from 0 to 126.

Note
	You can deactivate the slave with the checkbox Active.

In the following example, the first slave with the PROFIBUS address 10 is activated on bus 0, the second slave with the address 20 is activated on bus 1. The FO interface is set to "0: PDA 32 Integers“ mode. This means, that each of both slaves has an output range for 32 analog signals (Integer) and 32 digital signals. The data is transferred via the FO interface to e. g. ibaPDA.

Use the <Submit> button to save the settings in the device.

Use the <Refresh> button to refresh the settings display.

For further information about DP-64 mode, please see chapter .Compatibility mode 3Mbit (DP-64 mode)
