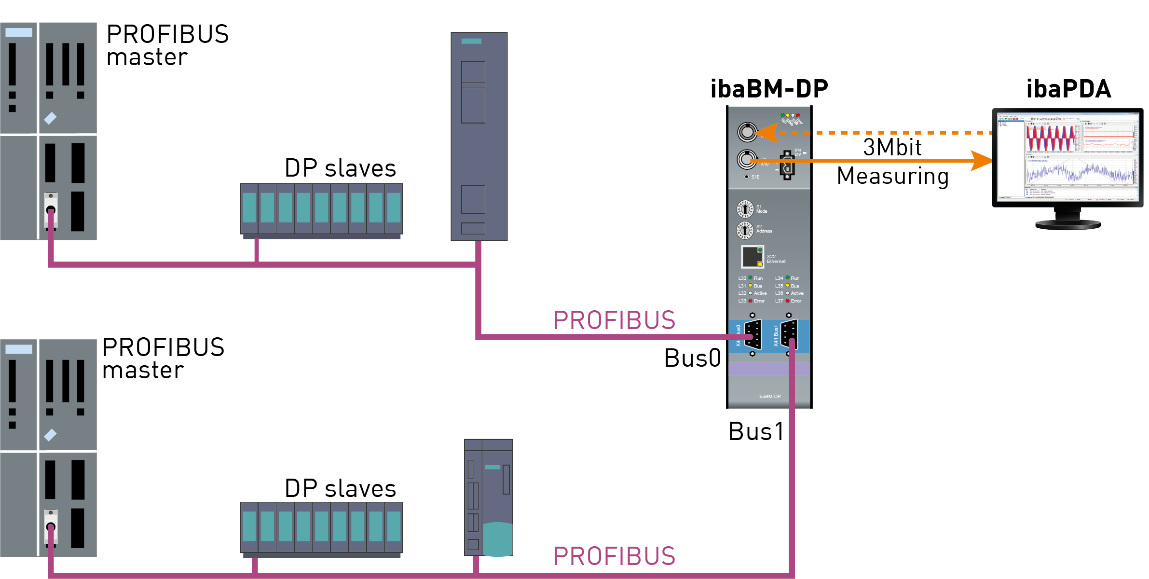

In compatibility mode 3Mbit, you can set up two slaves on the ibaBM-DP device. The configuration of the slaves is done in the web dialogs of ibaBM-DP.

Depending on the configuration of the slaves, you can send data for acquisition to ibaPDA (unidirectional FO connection) or use the bidirectional data exchange with ibaPDA (bidirectional FO connection).

Further explanations on the 3Mbit compatibility mode can be found in chapter Compatibility mode 3Mbit (DP-64 mode).
