Slave data is transferred to ibaBM-DP via TCP/IP at port 999.

The telegrams sent to ibaBM-DP are referred to as request in this manual, the telegrams sent from ibaBM-DP as response.

The input data for a slave is transferred to ibaBM-DP with a request telegram. ibaBM-DP accepts the data and sends back the output data of the same slave with a response telegram.

The request telegrams are processed sequentially, i. e., it is not necessary to wait for a response after a request, before sending further requests.

The following options are available:

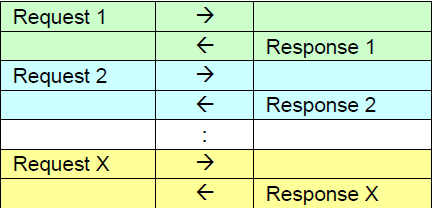

Procedure 1 (synchronous)

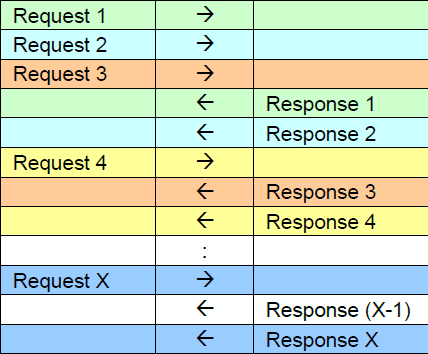

Procedure 2 (asynchronous)
