The PROFIBUS configuration contains the following slaves:
|
Slave |
Type |
Inputs * |
Outputs * |
ibaLogic struct type |
|---|---|---|---|---|
|
10 |
ET200S |
8 byte |
4 byte |
Slave_10_in / Slave_10_out |
|
24 |
ET200M |
9 byte |
5 byte |
Slave_24_in / Slave_24_out |
|
25 |
ET200S |
8 byte |
4 byte |
Slave_25_in / Slave_25_out |
|
26 |
ET200M |
9 byte |
5 byte |
Slave_26_in / Slave_26_out |
|
60 |
DP/DP coupler |
32 byte |
32 byte |
Slave_60_in / Slave_60_out |
* Inputs/outputs from the view of the DP master

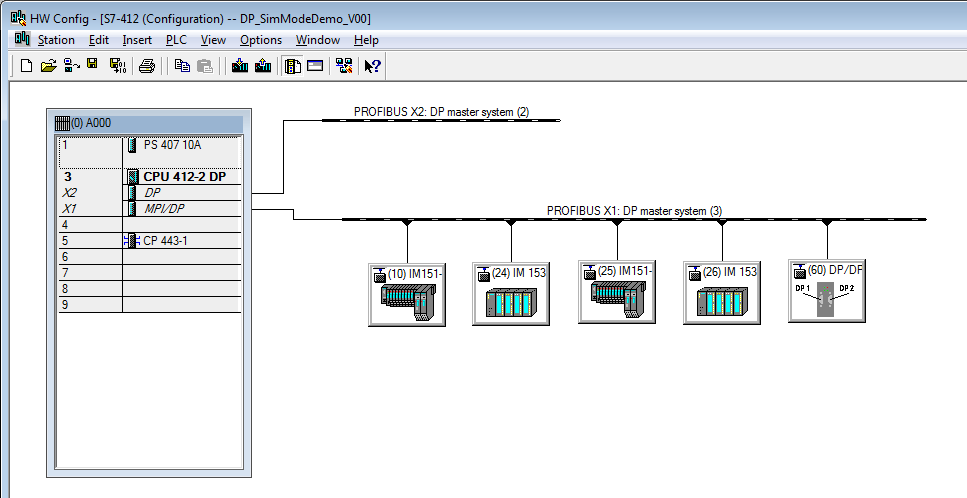

Example Step7 project
