Die PROFIBUS-Konfiguration enthält folgende Slaves:
|
Slave |
Type |
Inputs * |
Outputs * |
ibaLogic struct type |
|---|---|---|---|---|
|
10 |
ET200S |
8 Byte |
4 Byte |
Slave_10_in / Slave_10_out |
|
24 |
ET200M |
9 Byte |
5 Byte |
Slave_24_in / Slave_24_out |
|
25 |
ET200S |
8 Byte |
4 Byte |
Slave_25_in / Slave_25_out |
|
26 |
ET200M |
9 Byte |
5 Byte |
Slave_26_in / Slave_26_out |
|
60 |
DP/DP Koppler |
32 Byte |
32 Byte |
Slave_60_in / Slave_60_out |
* Inputs/Outputs aus Sicht des DP-Masters

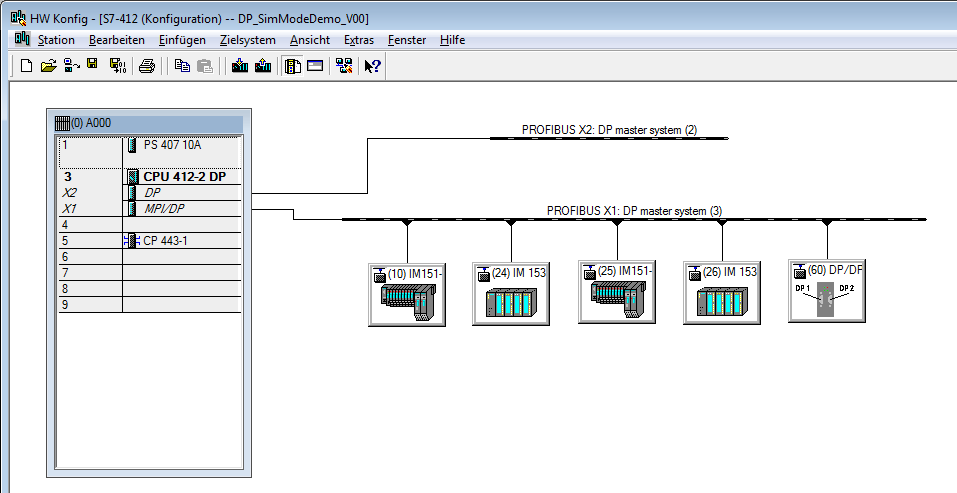

Beispiel Step7-Projekt
