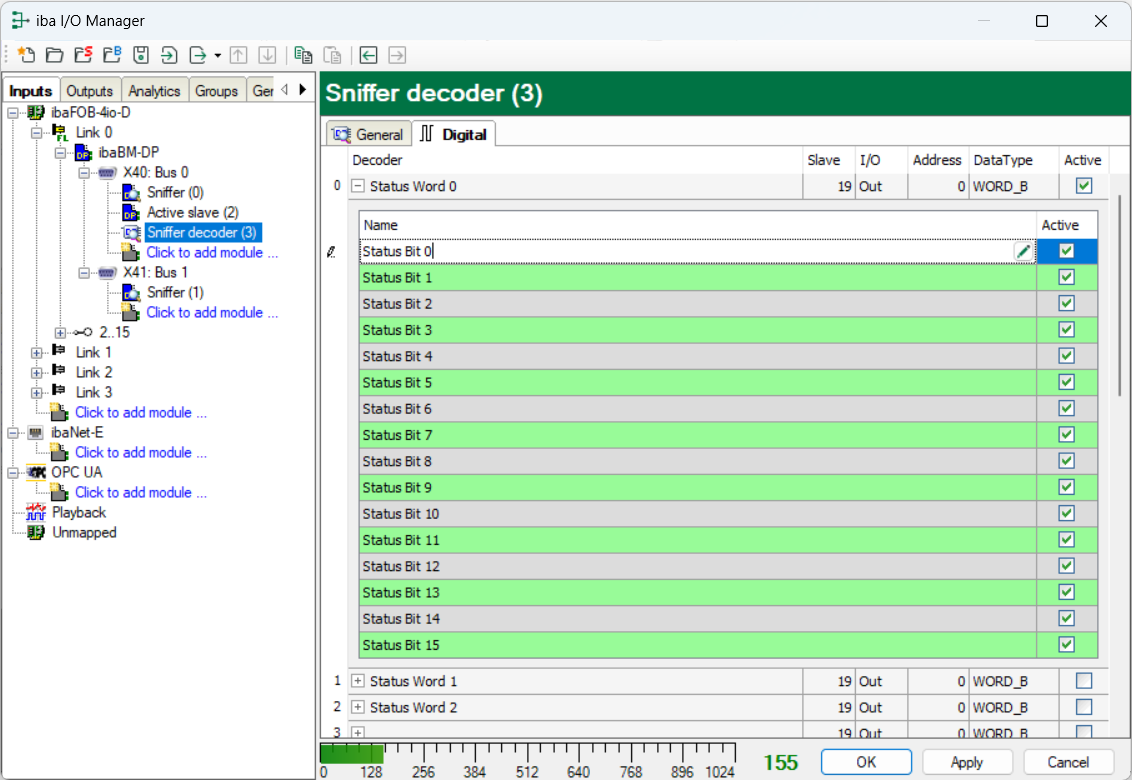

In the Digital tab, enter the digital signals to be acquired for the "Sniffer decoder" module one after the other.

The signals are declared in two steps. First, the words you want to acquire as source for the digital signals have to be defined in sequential order.

The individual columns in the signal list have the following meanings:

Connector

Assign a meaningful name to the source word.

Slave

Enter the slave address that is assigned to the signal.

I/O

Select the I/O type of the signal:

• In: Input signal from the master´s perspective

• Out: Output signal from the master´s perspective

Address

The byte address of the signal within the input or output data range of the slave. The address range always begins with the address 0.

Data type

Data type of the signal. Here, you can only select the types WORD and WORD_B.

Active

With this option enabled, the source signal is acquired with its 16 digital signals and considered when checking the number of licensed signals. Individual digital signals can be disabled.

For every source word, the corresponding list of 16 digital signals can be opened by clicking on the plus sign. Here, the single bits of the source word are defined.

Name

Enter a meaningful name to the individual digital signals.

Active

Only when this option is selected, the signal is acquired and also considered when checking the number of licensed signals.

Note
	Only the activated digital signals are considered when counting the number of licensed signals, hence no additional signal for the source word. ibaBM-DP only acquires one analog value, which is then decoded by ibaPDA. Thus, the range of analog values is used in ibaBM-DP for acquiring large amounts of digital signals.
