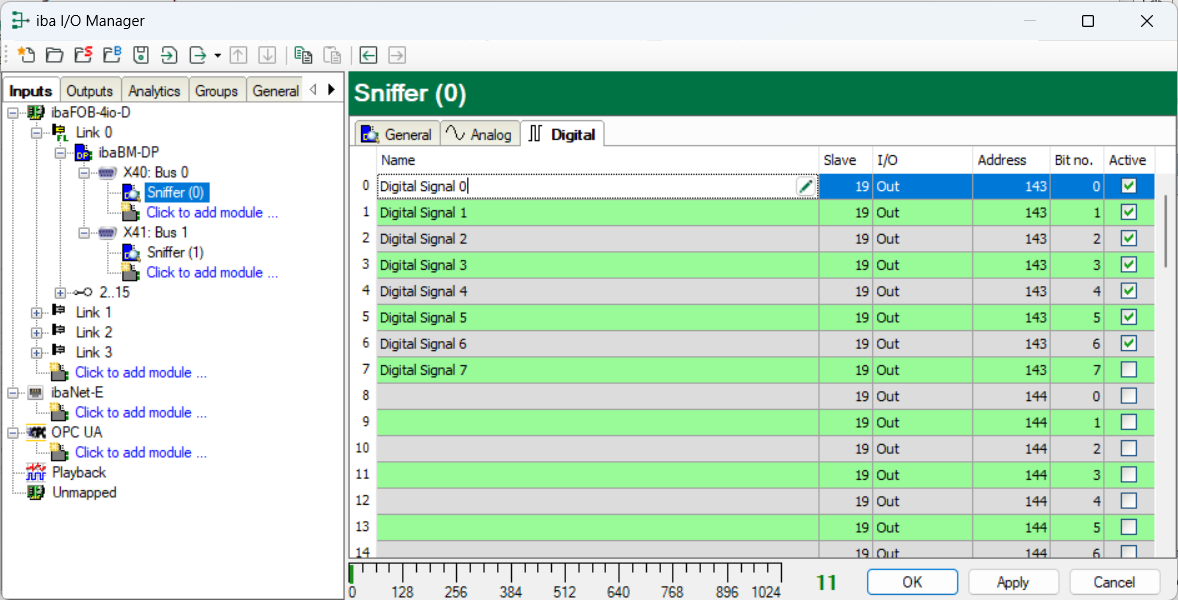

In the Digital tab, enter the digital signals to be acquired for the "Sniffer" module one after the other.

The individual columns in the signal list have the following meanings:

Name

Here, you can enter a signal name and additionally two comments when clicking the symbol in the Name field.

Slave

Enter the slave address that is assigned to the signal. Here, you can enter third party slaves that are present on the bus line as well as own active slaves on the device.

I/O

Select the I/O type of the signal:

• In: Input signal from the master´s perspective

• Out: Output signal from the master´s perspective

• Status: Displays the status of the slave defined as "Slave":

  • True: Slave is OK

  • False: Slave is not OK

• Active bus: Only relevant in redundancy mode, see chapter Redundancy mode

• Service: Only for service purposes in support cases

Address

The byte address of the signal within the input or output data range of the slave. The address range always begins with the address 0.

Bit No.

Enter the bit no within the byte defined as “Address“.

Active

Only when this option is selected, the signal is acquired and considered when checking the number of licensed signals.

More columns can be displayed or hidden, using the context menu (right mouse-click on the header).
