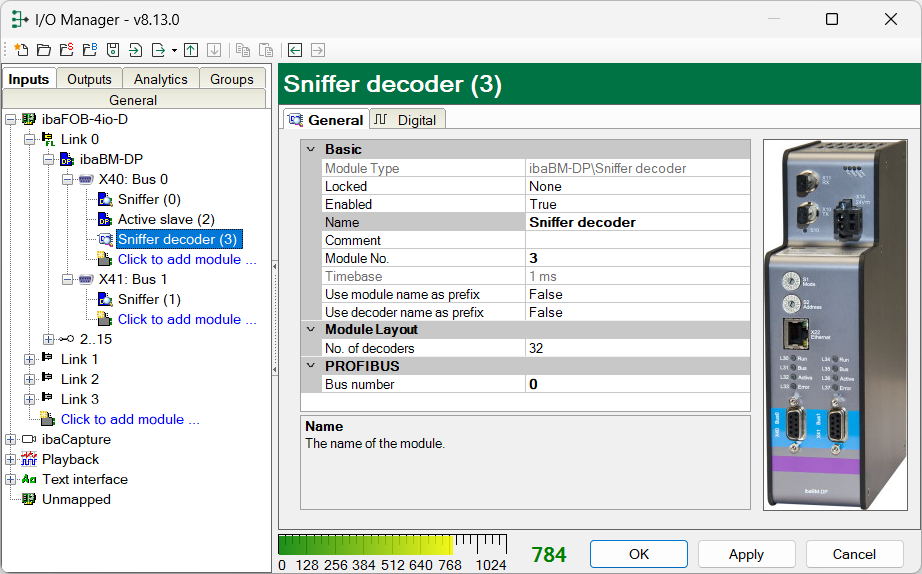

In the General tab, make the basic settings, advanced settings and settings for module layout and PROFIBUS for the Sniffer decoder module.

Basic settings

Locked, Enabled, Name, Comment, Modul No., Timebase (only display)

see chapter ibaBM-DP – General tab.

Use module name as prefix

This option puts the module name in front of the signal names.

Use decoder name as prefix

This option puts the related decoder name in front of the signal names.
Module layout

No. of decoders

Definition of the number of decoder modules (words) for this module, max. 512.
PROFIBUS

Bus number

The bus number corresponds to the PROFIBUS connection in the module tree. You can change the bus number; the decoder module is then displayed under the corresponding PROFIBUS connection.
