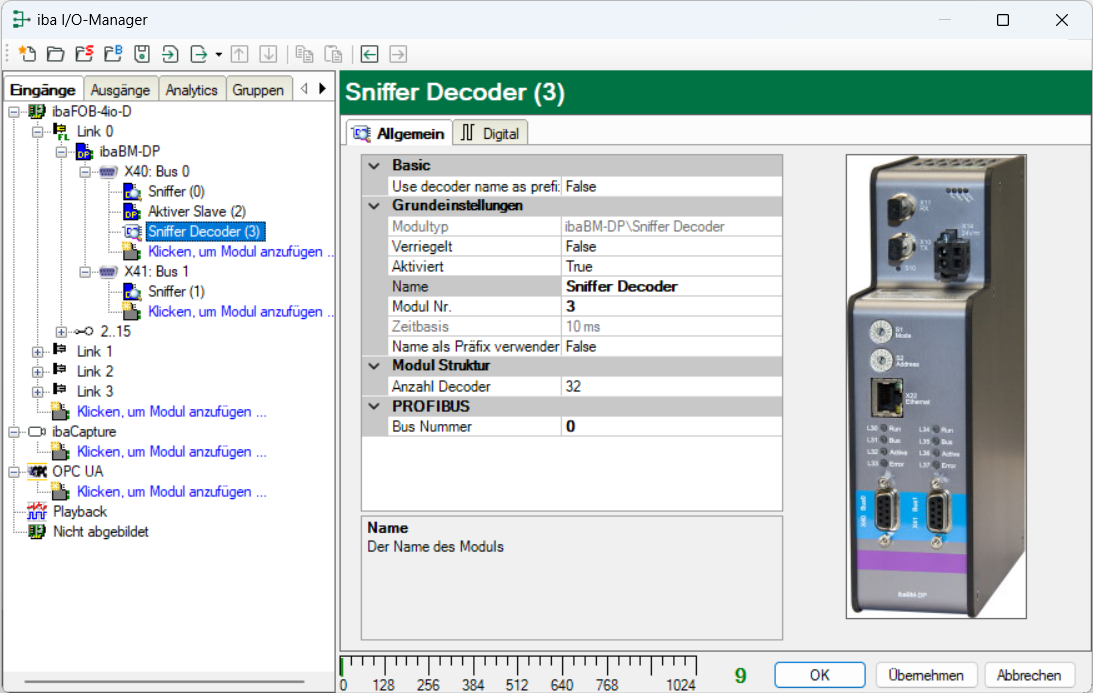

In the General tab, make the basic settings, advanced settings and settings for module layout and PROFIBUS for the "Sniffer decoder" module.

Basic settings

Locked, Enabled, Name, Modul No., Timebase (only display), Use name as prefix

see chapter ibaBM-DP – General tab.

Advanced

No. of decoders

Definition of the number of decoder modules (words) for this module, max. 512.

PROFIBUS

Bus number

The bus number corresponds to the PROFIBUS connection in the module tree. You can change the bus number; the decoder module is then displayed under the corresponding PROFIBUS connection.
