This mode is used to read / write up to 28 real values and 32 digital signals from / to a SIMATIC S7 (resp. TDC, SD) as PROFIBUS master. Due to limitations of the SIMATIC real data type only 28 values can be used (IN 122 bytes/OUT 122 bytes).
Output data

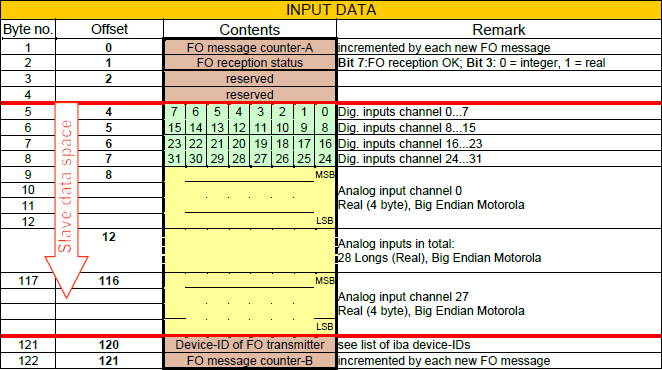

Input data
GSD-file
|
GSD file name |
Remark |
|---|---|
|
ibaF0Bn4.gsd |
Transfer in one block with SFC (S7-400) |
|
ibaF0Bn3.gsd |
Transfer in four blocks with SFC (S7-300) |
