This mode is used to read / write up to 32 integer values and 32 digital signals from / to a PROFIBUS master (IN 72 bytes / OUT 72 bytes).

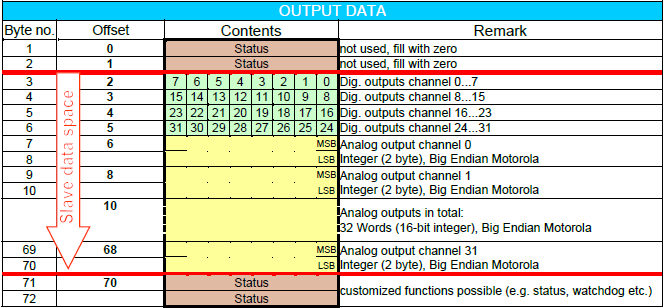

Output data

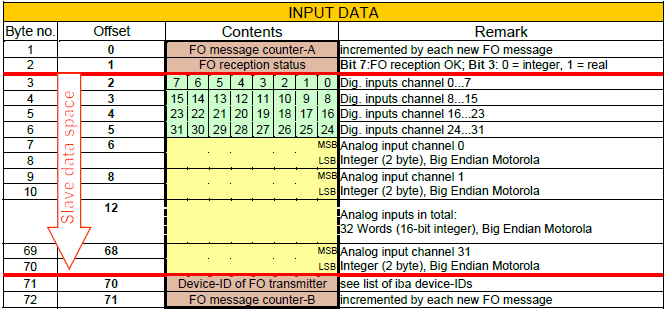

Input data
GSD-file
|
GSD file name |
Remark |
|---|---|
|
ibaF08n4.gsd |
Transfer in one block with SFC (S7-400) |
|
ibaF08n3.gsd |
Transfer in three blocks with SFC (S7-300) |
|
iba_0F08.gsd |
Transfer as word (S7-300/400) |
