This mode is used to write up to 28 real values and 32 digital signals to a SIMATIC S7 (resp. TDC, SD) as PROFIBUS master. Due to limitations of the SIMATIC real data type only 28 values can be used (IN 122 bytes/OUT 4 bytes).

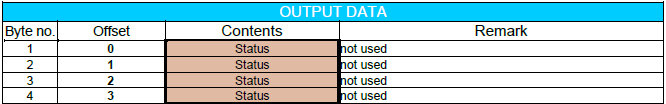

Output data

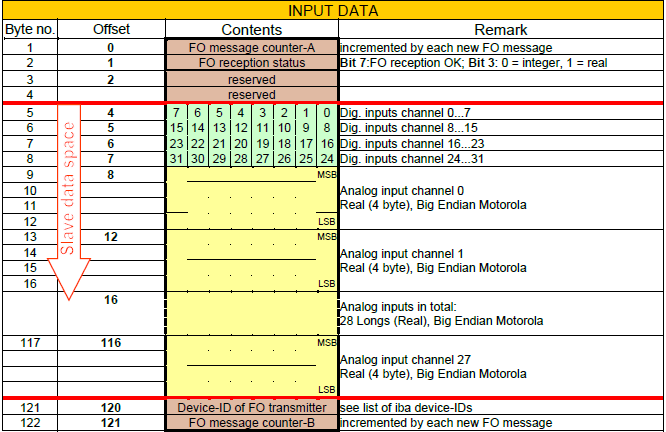

Input data
GSD-file
|
GSD file name |
Remark |
|---|---|
|
ibaF07n4.gsd |
Transfer in one block with SFC (S7-400) |
|
ibaF07n3.gsd |
Transfer in three blocks with SFC (S7-300) |
