This mode is used to write up to 32 real values and 32 digital signals to the PROFIBUS (IN 136 bytes/OUT 4 bytes).

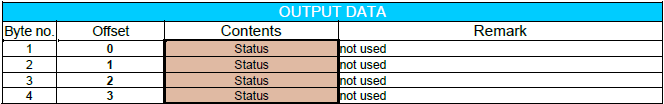

Output data

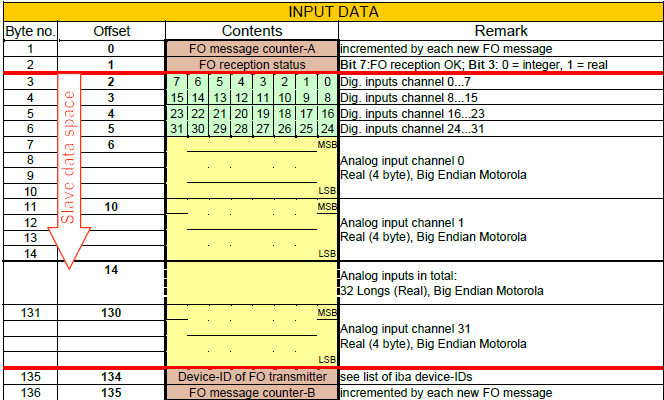

Input data
GSD-file
|
GSD file name |
Remark |
|---|---|
|
iba_0F06.gsd |
- |
Applications
-
ibaLogic
-
System coupling
-
SIMATIC TDC
-
No SIMATIC S7 (FW < 2.0 for S7-300, FW < 3.0 for S7-400), SIMADYN D
