This mode is used to write up to 32 integer values and 32 digital signals to the PROFIBUS (IN 72 bytes/OUT 4 bytes).

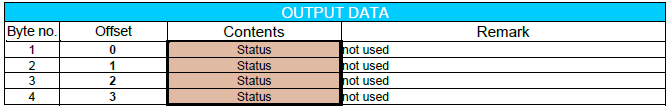

Output data

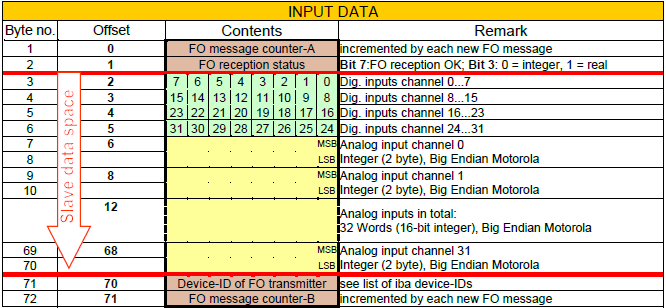

Input data
GSD-file
|
GSD file name |
Remark |
|---|---|
|
ibaF00n4.gsd |
Transfer in one block with SFC (S7-400) |
|
ibaF00n3.gsd |
Transfer in three blocks with SFC (S7-300) |
Applications
-
ibaLogic
-
System coupling
-
SIMATIC S7
-
SIMATIC TDC
-
SIMADYN D
