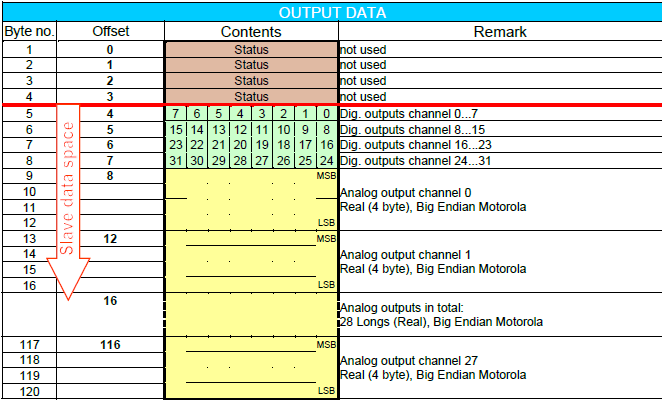

This mode is used to read up to 28 real values and 32 digital signals from the PROFIBUS (OUT 120 bytes) from a SIMATIC S7 as PROFIBUS master. Due to limitations of the S7 real data type only 28 values can be used.
Output data
Input data
No inputs
GSD-file
|
GSD file name |
Remark |
|---|---|
|
ibaF04n4.gsd |
Transfer in one block with SFC (S7-400) |
|
ibaF04n3.gsd |
Transfer in four blocks with SFC (S7-300) |
|
iba_0F04.gsd |
Transfer as double word (S7-300/400) |
