This mode is used to read up to 32 real values and 32 digital signals from the PROFIBUS (OUT 136 bytes).

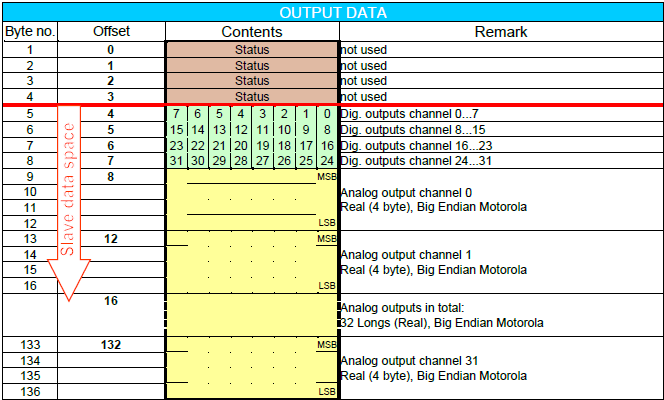

Output data
Input data
No inputs
GSD-file
|
GSD file name |
Remark |
|---|---|
|
iba_0F02.gsd |
- |
Applications
-
ibaPDA
-
ibaLogic
-
System coupling
-
SIMATIC TDC
-
No SIMATIC S7 (FW < 2.0 for S7-300, FW < 3.0 for S7-400), SIMADYN D
