Information on the settings in the General tab can be found in chapter Active slave module.
Output of analog values
Define the analog values you want to output in the Analog tab.
Name
Here, you can enter a signal name and additionally two comments when clicking the
symbol in the Name field.
Expression
Enter here an expression which defines the output signal. The Intellisense function supplies you with automatic support for creating an expression.

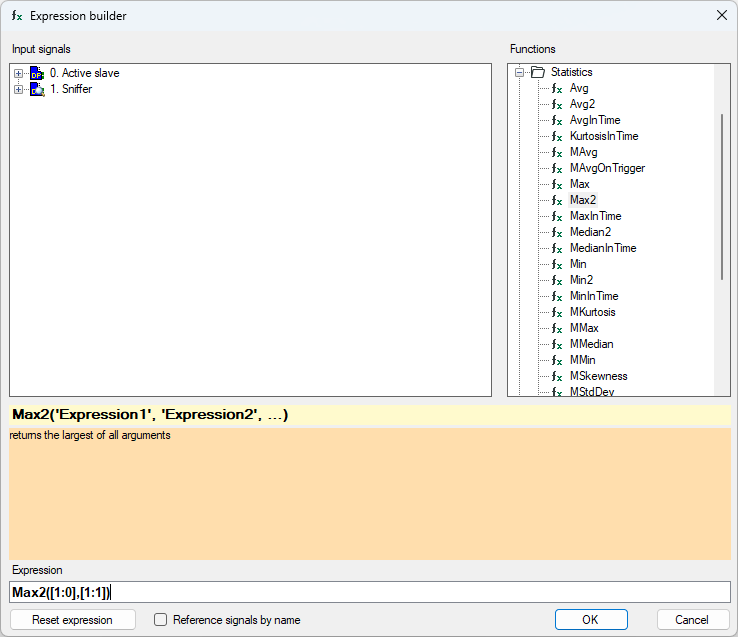

Alternatively, you can also open the printout editor by tapping the
symbol to create the desired printout.
Other documentation |
|
|---|---|
 |
For more information about the function of the expression builder and the available functions, please refer to the ibaPDA manual. |
Address
The byte address of the signal within the input data range of the slave. The address range always begins with the address 0.
Data type
Data type of the signal, see table in chapter Sniffer – Analog tab.
Default
Here, you can enter the default value. This column is only visible for enabled default values, see chapter Outputs for device module ibaBM-DP.
Active
Activate the signal, which is to be output.

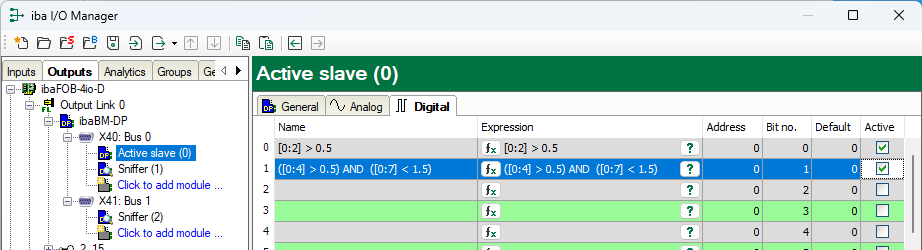

Output of digital values
Define the digital values you want to output on the Digital tab.
The procedure is identical to the procedure for the analog values. Additionally to the Address column, there is the Bit no. column where the bit address of the output signal is defined within the address byte.
Note |
|
|---|---|
 |
In case different analog signals and/or digital signals of a slave are configured on the same address, an error message will be issued when the I/O configuration is validated. |
