The following settings in the General tab relate exclusively to the outputs. For all other settings, see the description in chapter ibaBM-DP device module.
Bus 0/1
Enable default values
If the value is TRUE, for a slave which is not supplied with data, (e. g. broken FO cable, stop of data acquisition in ibaPDA) the default values are sent by the device.
If the value is FALSE, the signal values which have been received last, will be repeated.
The default values can be individually set for the outputs for each signal. If the value is TRUE, an additional column Default is displayed for the analog and digital signals.
When selecting the Output menu, the modules which have been configured under Input are displayed. Outputs can be used only for modules of the type "Active slave".

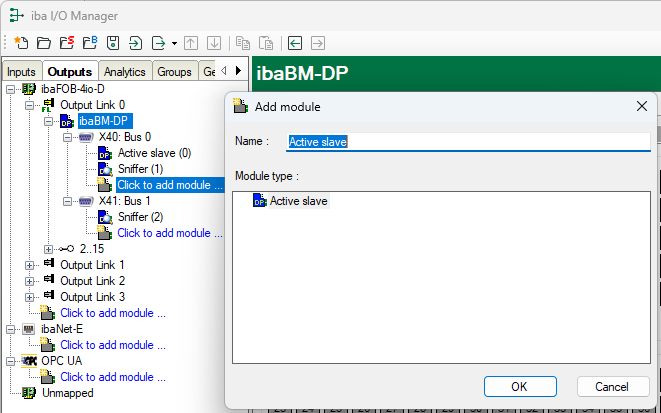

You can configure a new module of the "Active slave" type by clicking on the blue "Click to add module…" command. In the dialog box, only the "Active slave" type module is available. Add the module by clicking on <OK>.
