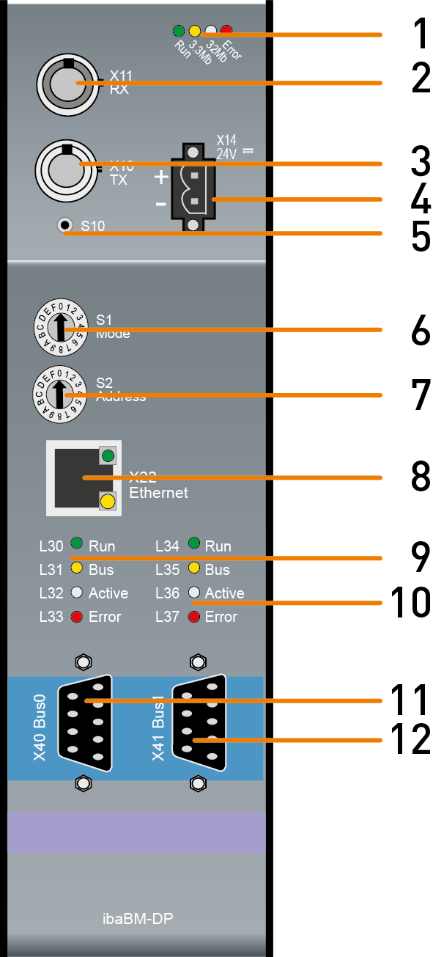

Front view
|
1 |
Operating state display |
7 |
Rotary switch S2 |
|
2 |
FO input (RX) X11 |
8 |
Ethernet connection X22 |
|
3 |
FO output (TX) X10 |
9 |
PROFIBUS status LEDs Bus0 |
|
4 |
Power supply X14 |
10 |
PROFIBUS status LEDs Bus1 |
|
5 |
Push button S10 |
11 |
DP connection X40 Bus0 |
|
6 |
Rotary switch S1 |
12 |
DP connection X41 Bus1 |
Bottom view
|
1 |
Grounding screw X29 |
|
2 |
USB interface X12 (only for service purposes) |
