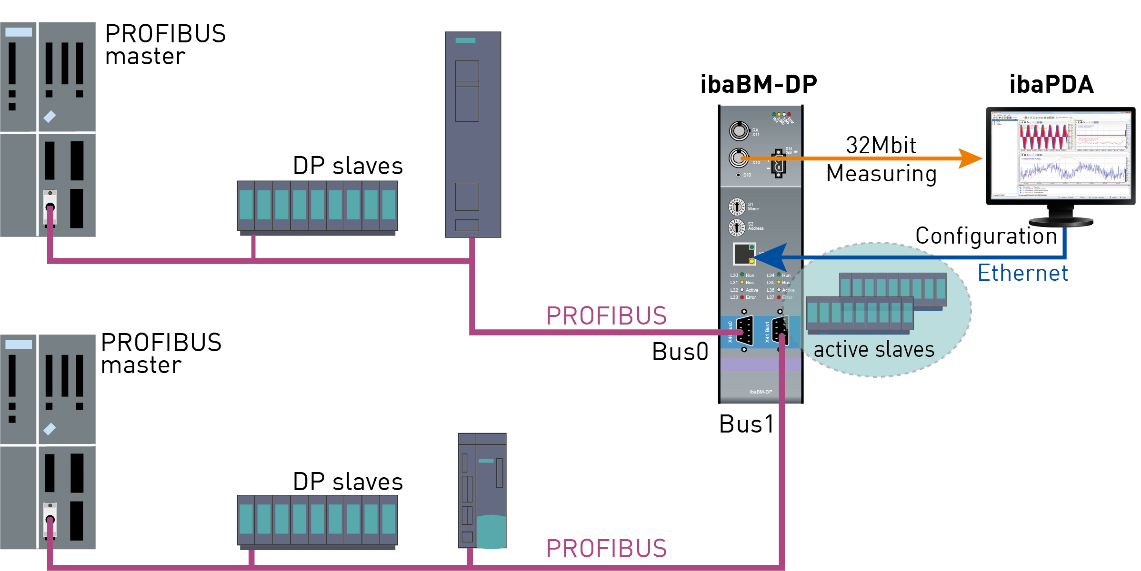

If the device is operated in compatibility mode 32Mbit, only a unidirectional connection is needed for acquiring the data in the ibaPDA system. The configuration data is transmitted over an Ethernet connection.

Regarding the configuration as sniffer or active slave, the same is true as shown in the example with 32Mbit Flex, see chapter Data acquisition 32Mbit Flex.
