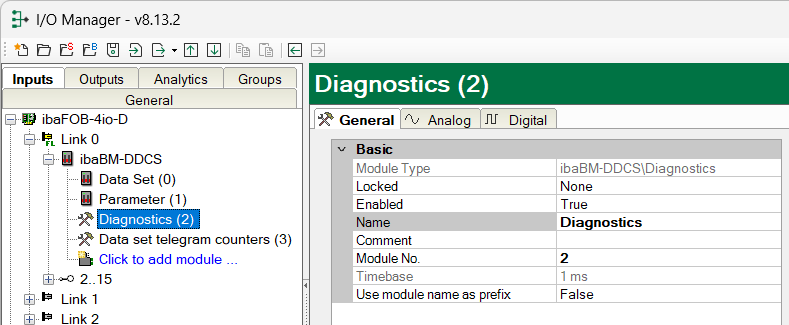

Here you can configure the basic settings for the Diagnostics module.
Basic
Module Type (information only)
Indicates the type of the current module.
Locked
You can lock a module to avoid unintentional or unauthorized changing of the module settings.
Enabled
Enable the module to record signals.
Name
You can enter a name for the module here.
Comment
You can enter a comment or description of the module here. This will be displayed as a tooltip in the signal tree.
Modul No.
This internal reference number of the module determines the order of the modules in the signal tree of ibaPDA client and ibaAnalyzer.
Timebase
All signals of the module are sampled on this timebase.
Use module name as prefix
This option puts the module name in front of the signal names.

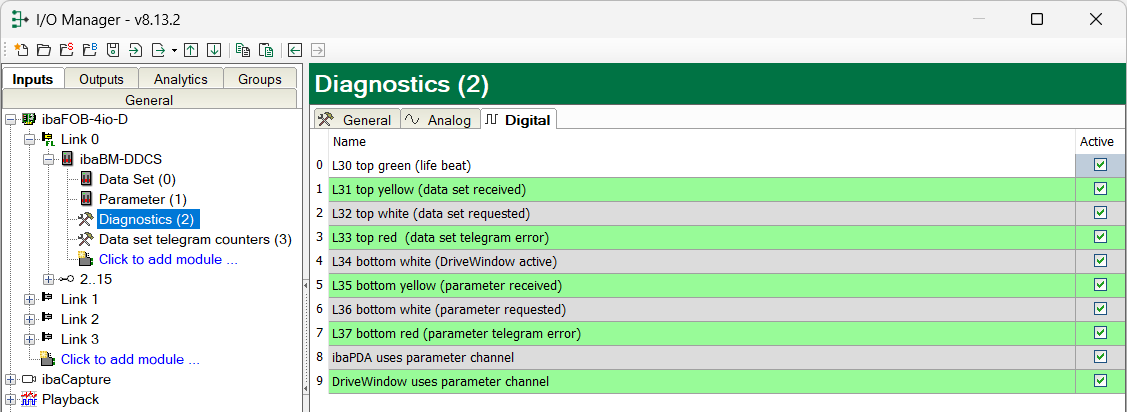

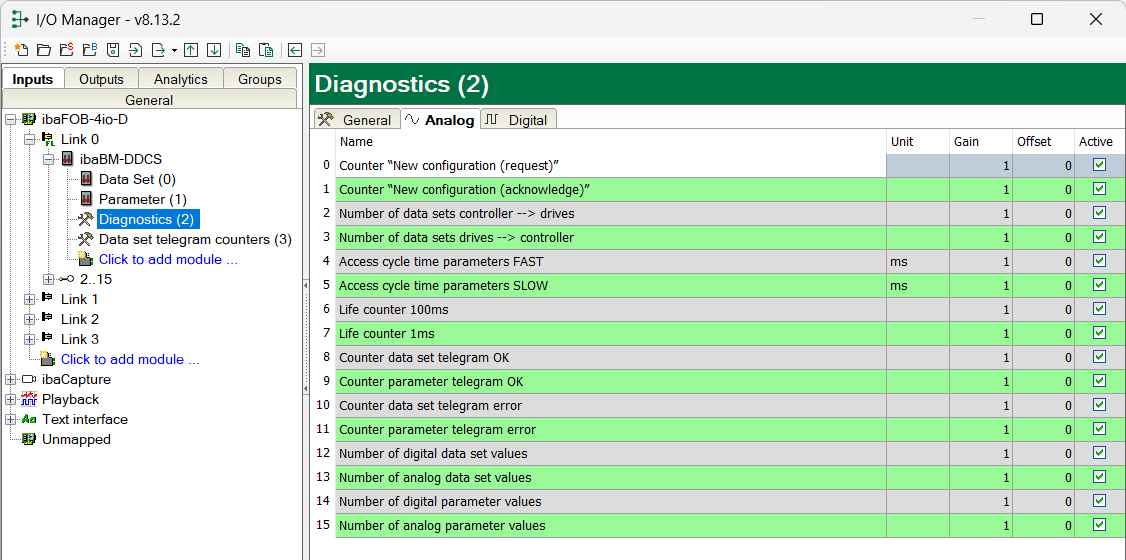

The diagnostic data is pre-defined in the Analog and Digital tab. The diagnostic data can be visualized and saved like measured values.
Note |
|
|---|---|
 |
Beginning with ibaPDA version 6.35, the diagnose data is pre-defined by ibaPDA. In ibaPDA version 6.34 or older, the user had to manually enter the diagnose data. In this case, the number of analog and digital signals had to be entered in the General tab and the diagnose values with address and designation had to be manually entered in the Analog and Digital tabs. For an easier configuration, pre-configured diagnose modules for the most important diagnostic data were available on the data medium “iba Software & Manuals”, which is included in delivery. The modules could be imported in the I/O Manager. - Module 290: diagnostic counter for data set telegrams drive 1 – 16 - Module 291: diagnostic counter for data set telegrams drive 17 – 32 - Module 299: general diagnostic values, counter, error displays |
