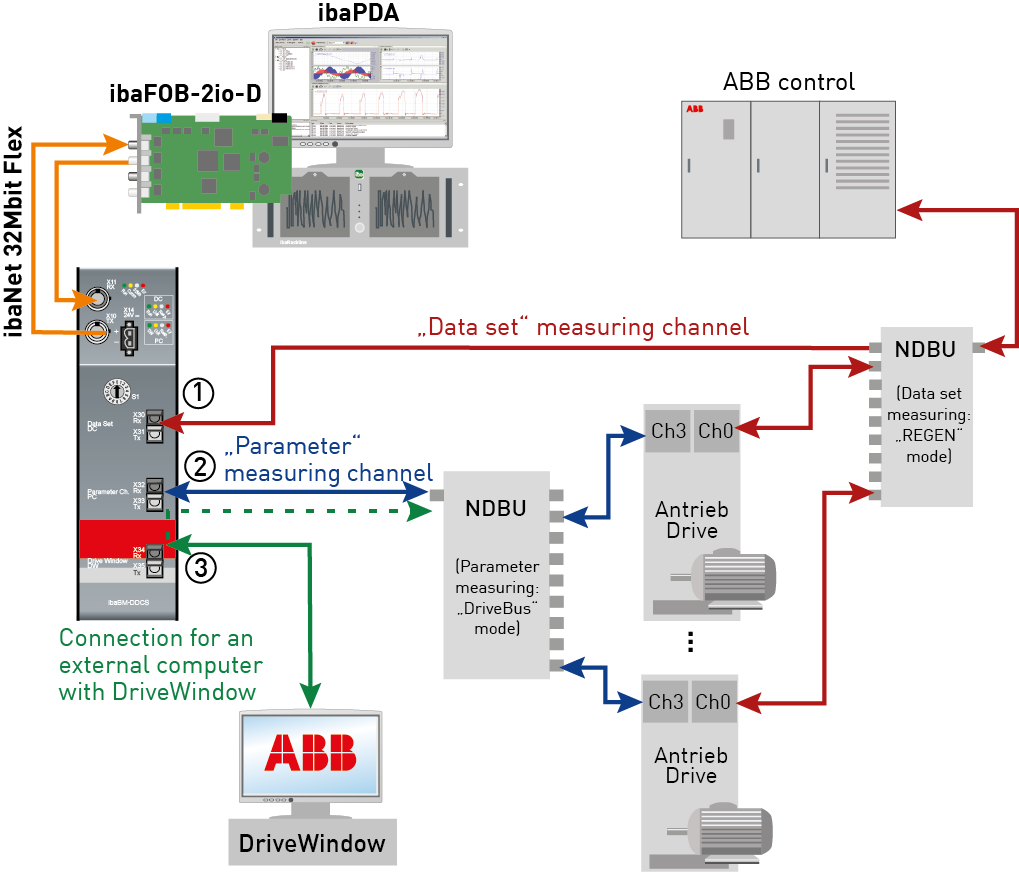

ibaBM-DDCS offers 2 options for capturing and recording measured signals:

  1. Logging of the signals in the data set channel (CH0 connection of the drives). Simplex fiber optic connection between ibaBM-DDCS X30 and an arbitrary channel of the NDBU-95 (NDBU operation mode: „REGEN“). The X31 output must not be connected to the NDBU-95. Alternative connection: ibaBM-DDCS is integrated in the connection between NDBU-95 and ABB control. See also chapter Star topology with NDBU mode DDCS/DRIVE BUS.

  2. Querying of other values from the drives in the parameter data channel (CH3 connection of the drives). Duplex fiber optic connection between ibaBM-DDCS X32/X33 and the CH3 port of a drive or the MSTR port of a NDBU-95 (NDBU operation mode: „DDCS/DRIVEBUS“).

  3. Furthermore, ibaBM-DDCS offers a connection to loopthrough configuration and measurement queries of an external computer with DriveWindow. The DriveWindow computer is connected to the drives via the parameter channel if needed. Duplex fiber optic connection between ibaBM-DDCS X34/X35 and the DriveWindow computer.
