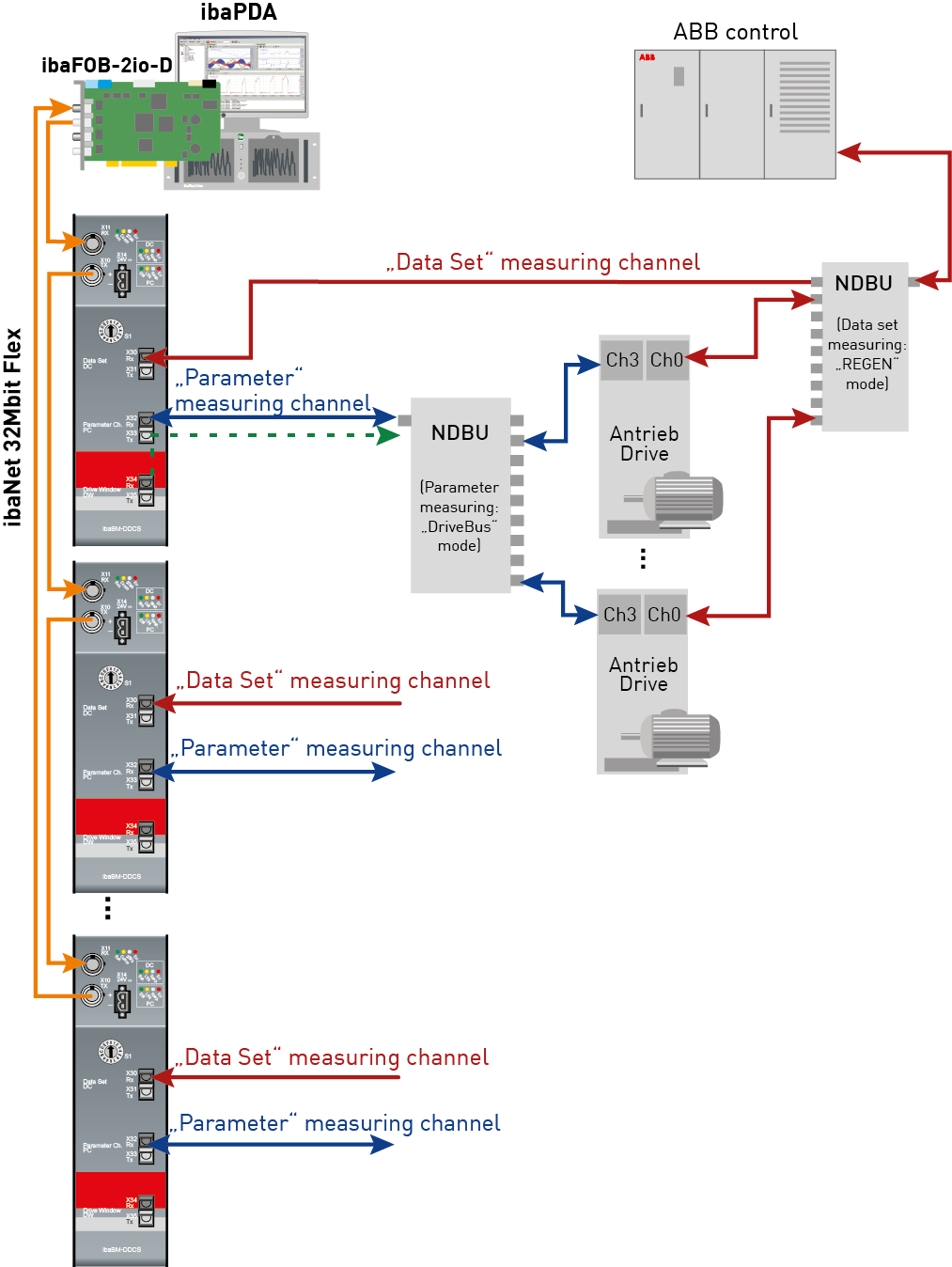

Cascading ibaBM-DDCS devices

Up to 15 iba devices that support the 32Mbit Flex protocol (e.g., ibaPADU-S-IT, ibaBM-eCAT) can be connected in a fiber optic ring per I/O link of an ibaFOB-D card. The rotary switch S1 has to be set to a unique device number at each device.

Please note that the total data rate in the fiber optic ring must be distributed among the connected devices.

Other documentation
	For more information, refer to the description of the 32Mbit Flex protocol in the ibaFOB-D manual.
