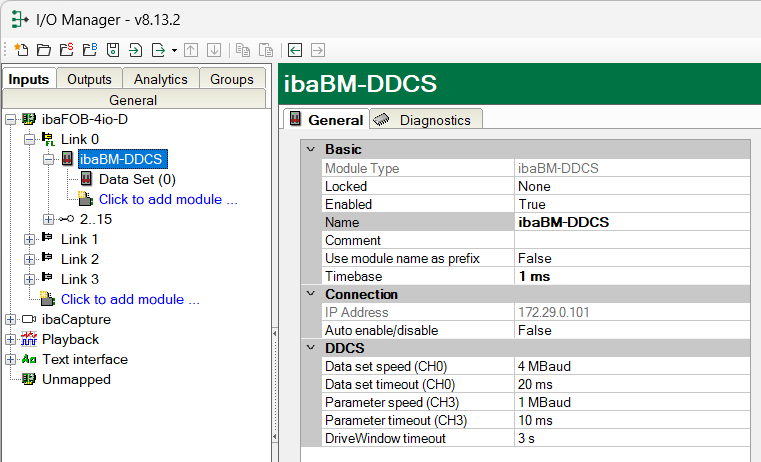

In the General tab, make the basic settings and settings for the DDCS-specific channels.
Basic
Module Type (information only)
Indicates the type of the current module.
Locked
You can lock a module to avoid unintentional or unauthorized changing of the module settings.
Enabled
Enable the module to record signals.
Name
You can enter a name for the module here.
Comment
You can enter a comment or description of the module here. This will be displayed as a tooltip in the signal tree.
Timebase
All signals of the module are sampled on this timebase.
Use module name as prefix
This option puts the module name in front of the signal names.
DDCS
Data set speed (CH0)
Here you can select the speed of the data set channel; the default setting is 4 MBaud.
Data Set Timeout (CH0)
Here you can set a timeout for the data set channel.
Parameter speed (CH3)
Here you can select the speed of the parameter channel, default value: 1 MBaud
Parameter Timeout (CH3)
Here you can set a timeout for the parameter channel.
DriveWindow Timeout
Here you can set a timeout for the parameter channel.
Note |
|
|---|---|
 |
Make sure that the baud rates set here match the settings of the connected NDBU-95. |
Connection
IP address
The IP address of the device in the FOB-D network is displayed here. Please refer to the description in the ibaFOB-D manual.
Auto enable/disable
When this option is enabled and ibaPDA cannot connect to this device during the start of the acquisition then it will disable this module and start the acquisition without it. During the acquisition it will try to reconnect to the device. When it succeeds it will automatically restart the acquisition with this module enabled.
If this option is not enabled then ibaPDA will not start the acquisition when it cannot connect to the device.
Read configuration from device
This command allows you to read a configuration directly from the device.
