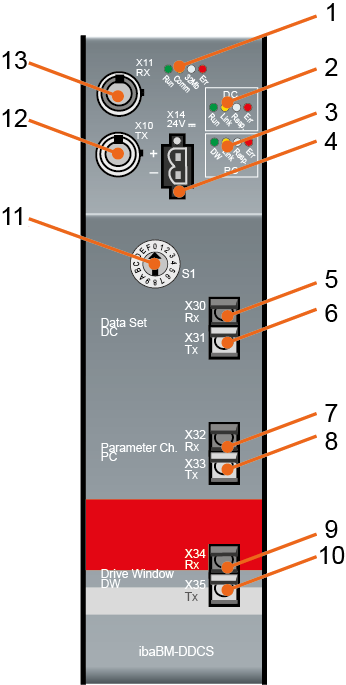

Front view
|
1 |
Operating state display |
8 |
X33 Tx (Link1 = Parameter channel, CH3) |
|
2 |
Status LED Data Set query |
9 |
X34 Rx (Link2 = DriveWindow) |
|
3 |
Status LED Parameter query |
10 |
X35 Tx (Link2 = DriveWindow) |
|
4 |
Plug for power supply |
11 |
Rotary switch S1 |
|
5 |
X30 Rx (Link0 = Data Set channel, CH0) |
12 |
FO output X10 TX |
|
6 |
X31 Tx (Link0 = Rx mirror, do not connect) |
13 |
FO input X11 RX |
|
7 |
X32 Rx (Link1 = Parameter channel, CH3) |
