The following chapters provide a detailed example of how to create a report layout using the Report Designer. In the Report Designer, you can create the layout for your report and insert text, signal curves, and information fields.
The integration of frequently used objects is also explained:
-
Headers and footers, see Basic report elements
-
Image, text, and barcode objects, see Basic report elements
-
Graphs, video stills, and static tables, see Adding data to the report
-
Diagrams, data graphics, and measuring instruments, see Adding data to the report
-
Layers and dynamic tables, see Layers and dynamic tables
Note |
|
|---|---|
 |
You can find the DAT files and analysis used in the example on the data storage medium "iba Software & Manuals". For comparison, the finished report design is also available as an LST file.
|
Target layout of the report

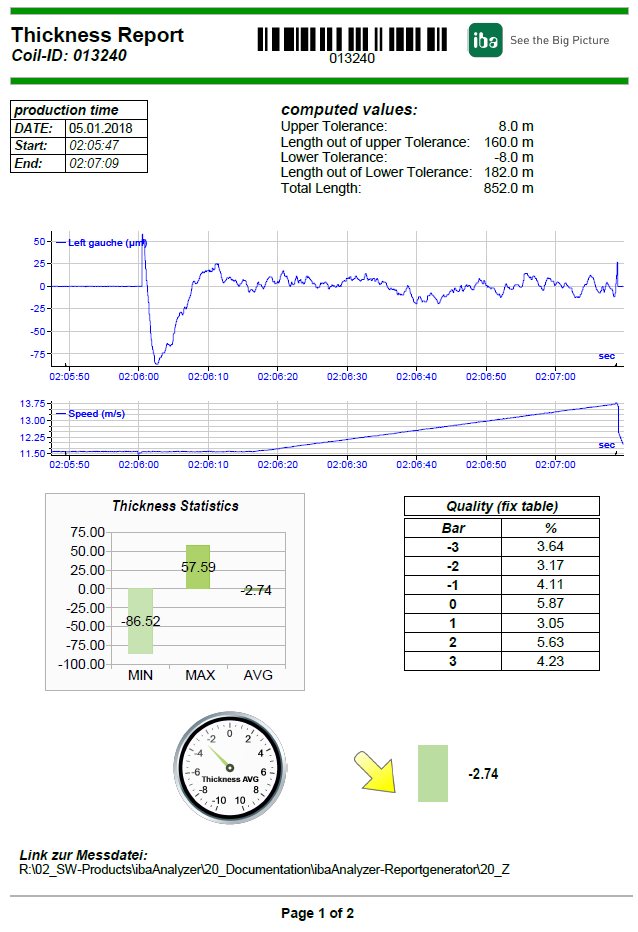

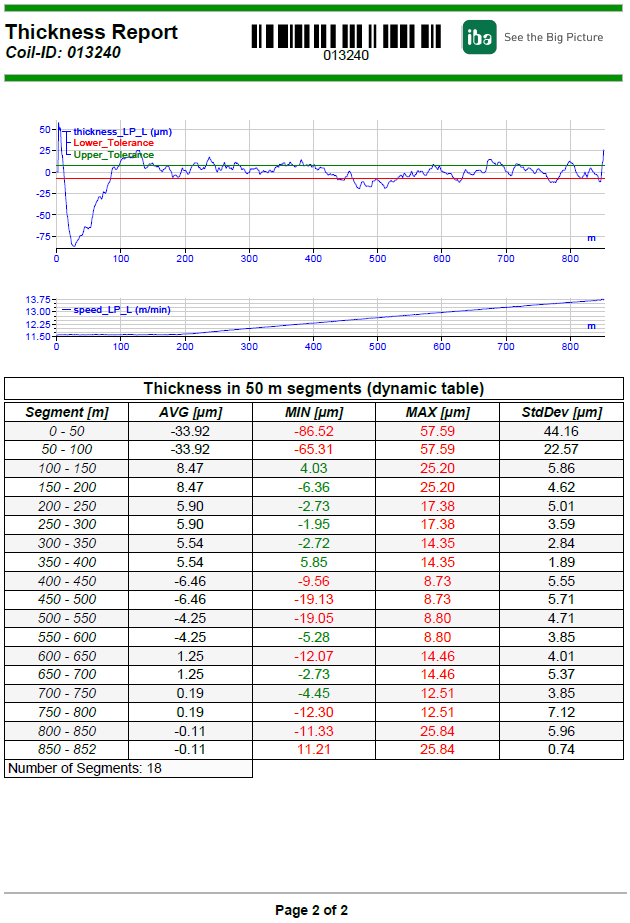

The following figure shows the desired result of the report design.
 |
 |
Prerequisite
You have already specified all the necessary data in the Report dialog. Changes made there are automatically passed on to the Report Designer.
If you use the analysis from the example on the data storage medium "iba Software & Manuals", all the data is already set up correctly.
Report Designer launch

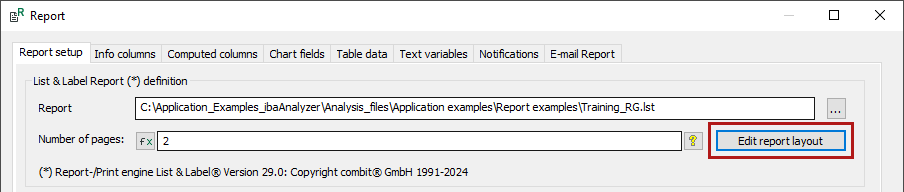

In the Report dialog on the Report Settings tab, you can open the Report Designer using the <Edit report layout> button.
Please note that the Project Wizard is not used in this example. Skip these settings using <Cancel>.
Note |
|
|---|---|
|
If you have changed variable names in the ibaAnalyzer Report dialog that are already being used in the report design, an error message will appear in the Report Designer. In the layout preview or preview in the Report Designer, you will then see only the former variable name instead of a value. Then correct the variable in the Report Designer or in the Report dialog. |
