New features in version 8.4

Changes to database connections

MS Access support discontinued

As of ibaAnalyzer version 8.4, support for MS Access has been discontinued. When you open an analysis with a configured MS Access connection, a corresponding message appears. Migrate existing MS Access configurations to a different database system.

For more information, see Configuring the database connection.

Revised user interface

The interface for configuring database connections has been revised. When you create a new connection, a separate dialog opens in which you define all connection parameters.

Enhancements for database extraction

Validation of the database schema

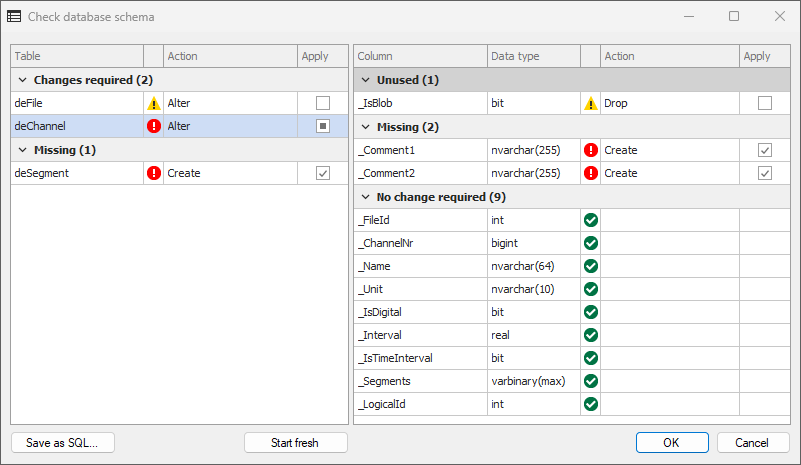

The former function "Create default tables" is now called "Check database schema". Use it to compare the table structures defined in the database connection with the actual database schema.

Colored markers indicate mandatory and optional changes to tables and columns. You can apply the changes directly or export them as an SQL script. Before the extraction, the dialog already shows you which tables and columns will be created or modified.

For more information, see Validation of the database schema.

Definition of segment tables via the archive profiles

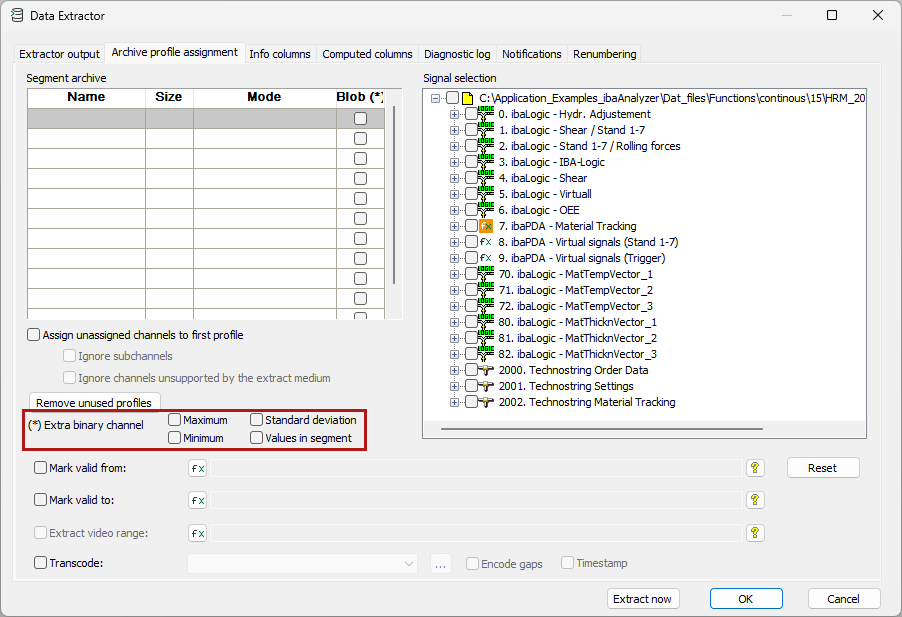

For database extraction in multi-column format, you now define the segment tables directly via the archive profiles. ibaAnalyzer generates the tables automatically based on the profile settings. The average is always created. Maximum, minimum, standard deviation and values in segment are created if at least one profile has them activated.

For more information, see Archive profile assignment.

Standardized extraction behaviour

Database extraction has been standardized across all supported database systems. Regardless of the database system in use, identical settings result in identical table structures and consistent behavior. In addition, you can now use BLOB columns with all supported database systems.

Object naming (for example table and column names) still depends on the database system and may contain system-specific prefixes or conventions.

Centralized location for log files

Log files from database or file extraction are now stored in a fixed directory that you cannot change. This ensures that the path is always valid and that the log files are stored reliably in one central location.

For more information, see Diagnostic log.

Extended options for using HD stores

Displaying multiple HD stores in the event table

In the event table, you can now display data from multiple HD stores at the same time. Previously, a newly added HD store replaced the one already displayed. You can now evaluate several data sources in parallel.

For more information, see Event table.

Extended signal conditions in HD queries

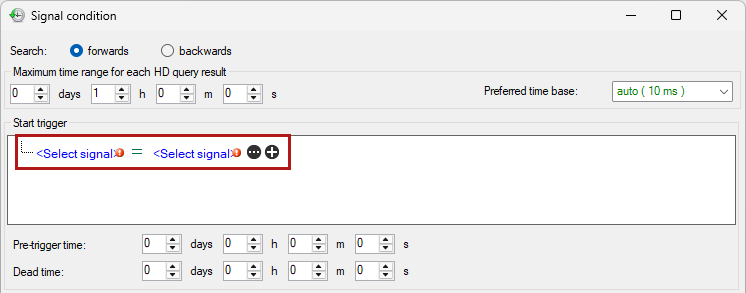

As of this version, you can compare two signals directly in HD queries, not only against a constant value. To do so, switch the right operand of the comparison between a constant value and a signal.

For more information, see Formulating signal conditions.

New length-based delay functions DelayLengthL and DelayLengthV

ibaAnalyzer provides two new length-based delay functions:

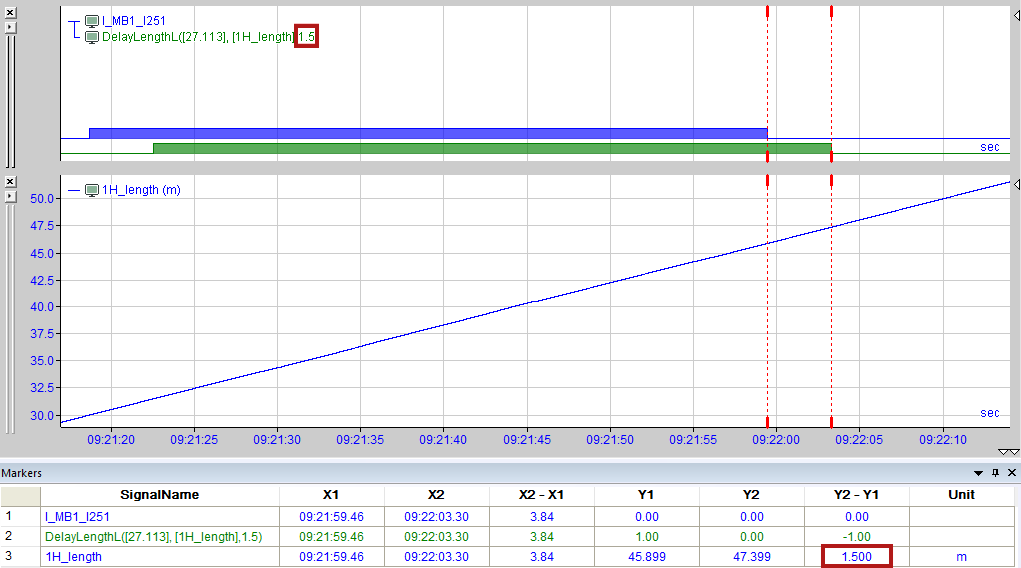

• DelayLengthL delays a time-based expression by a defined length displacement (in m), based on a length signal.

• DelayLengthV works in the same way but uses a speed signal (in m/s) to calculate the delay.

These functions are intended primarily for configuring and adjusting material tracking processes in ibaQDR. You can validate the expressions in ibaAnalyzer beforehand and then transfer them to ibaQDR as virtual signals.

For more information, see DelayLengthL and DelayLengthV.

New ibaInSpectra features in ibaAnalyzer

ibaInSpectra Expert: Adding speed markers

In the FFT view of InSpectra Expert, you can add speed markers via the marker menu of the view. These markers correspond to the curve of the speed signal. The marker allows you to check how amplitude variations in the spectrum correlate with the rotational speed

Spectrum weighting

InSpectra Expert now supports frequency weighting in the spectrum. A weighting filter adapts the measured values to the sensitivity of the human ear or body for a given frequency range, for example for sound measurements using A/B/C/D weighting or for vibration assessments according to ISO 2631-1 and ISO 5349-1.

You can find this feature in the profile under Calculations if the orders are not active.

InSpectra orbit profile – Automatic centering

The orbit can now be centered automatically. For this purpose, the center of the previous orbits is calculated as an exponential average, and this value is used as an offset for the X and Y input signals.

ibaInSpectra and ibaInCycle: Waterfall view with non-equidistant planes

In the waterfall view, planes are no longer displayed at equal distances when using the z-axis scaling types Plane by time and Plane by signal. The distance between the planes is based on the actual time difference or signal value difference between the planes, so that the display reflects the real spacing of the measurement data.

ibaInCycle circle view with band values

The circle view displays the values of an InCycle Expert module in a circle. Previously, only the sampled values of each cycle could be displayed. Starting with this version, the band values of each cycle can also be displayed. You can configure the bands in the Profile tab under the Bands and Calculations tabs. In the properties of the circle view, the option Display bands is available under Elements – Curve.
