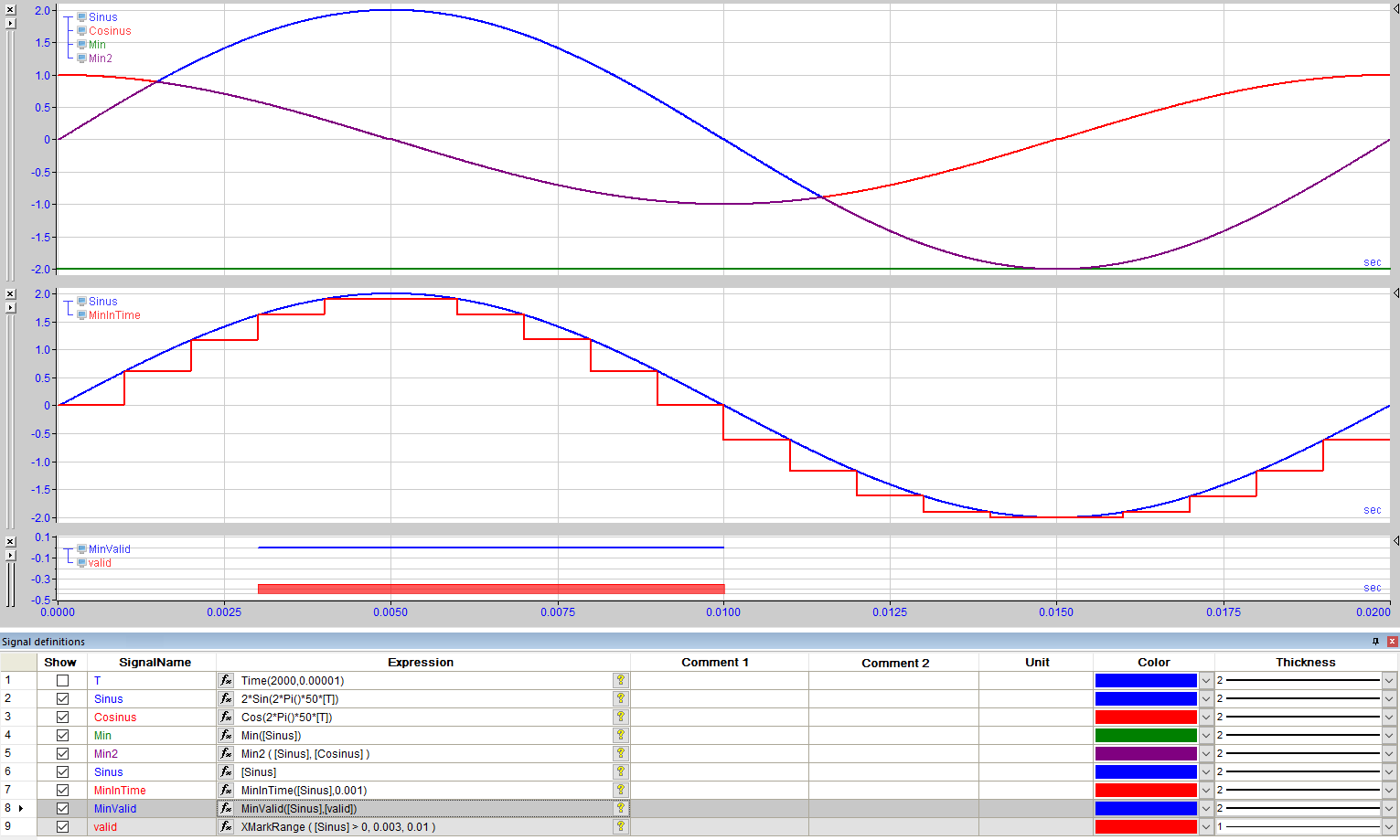

Min
Min('Expression')
Description
This function returns the minimum value of the 'Expression' signal. The result is displayed as a constant value (horizontal line) in the graph.
Min2
Min2('Expression1','Expression2',…)
Description
This function returns the minimum of all specified signals, 'Expression1', 'Expression2' etc. All signals are compared measured value by measured value, with the smaller value in each case being presented as the result.
MinInTime
MinInTime('Expression','Interval')
Arguments
|
'Expression' |
Signal or expression for which to form the minimum |
|
'Interval' |
Length of the interval over which to calculate the minimum |
Description
This function returns the minimum value of 'Expression' within each interval of the length 'Interval'. You can use this function for time based signals ('Interval' in seconds) as well as for length based signals ('Interval' in meters).
MinValid
MinValid('Expression','Valid')
Arguments
|
'Expression' |
Signal or expression for which to form the minimum |
|
'Valid' |
Control signal |
Description
This operation returns the minimum of 'Expression' for the interval (time or length) where a related control signal is TRUE.
MMin
MMin('Expression','Interval')
Arguments
|
'Expression' |
Signal or expression for which to form the minimum |
|
'Interval' |
Length of the interval over which to calculate the minimum |
Description
This function returns the minimum of 'Expression' within a floating X-axis interval of the length 'interval', advancing by one measuring point in each case.
