ManY('Xbase','y0','y1',…)

Arguments

'XBase'	Sampling rate of the resulting signal
'y0', 'y1',…	Y-values of the resulting signal

Description

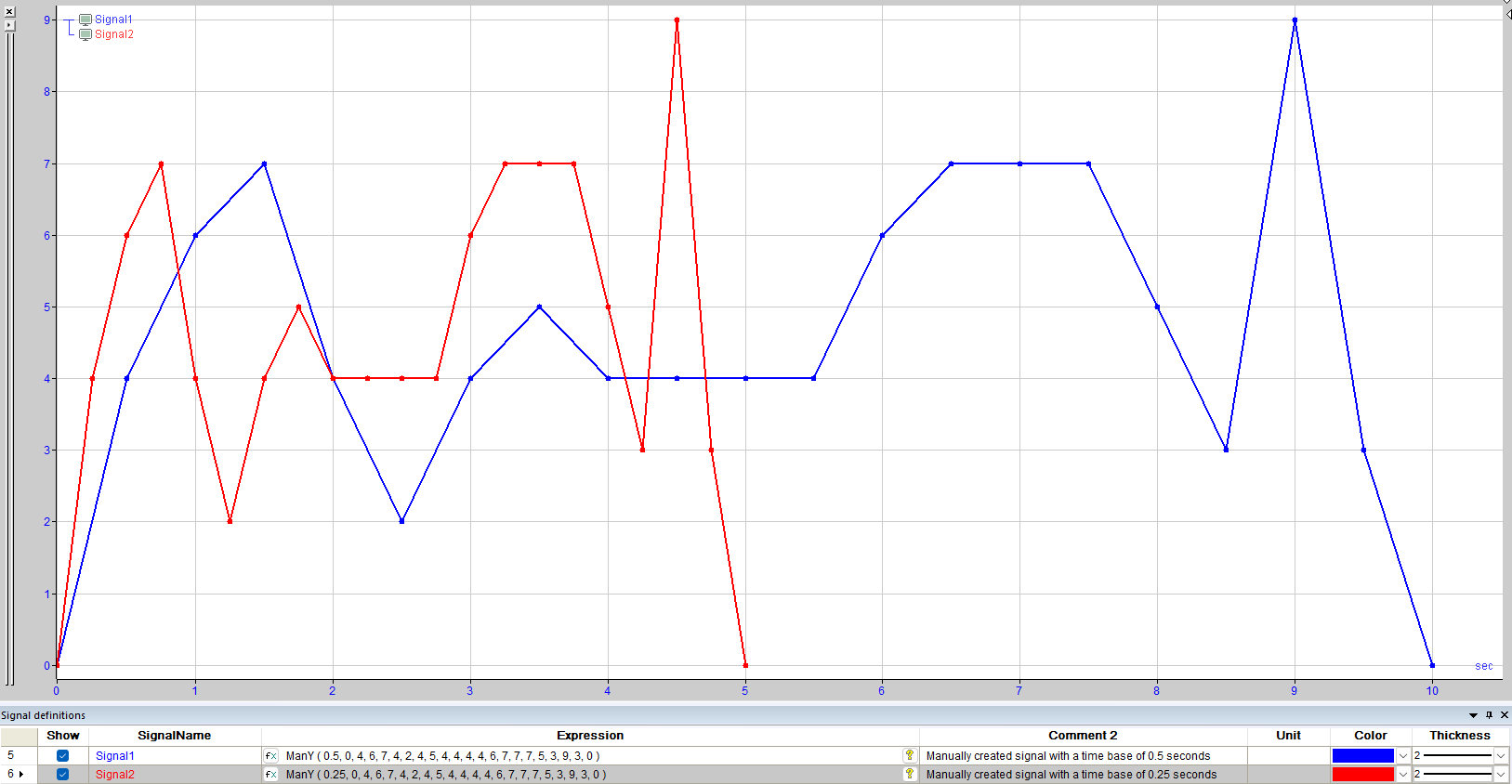

You can use this function to manually create a signal trend with the "measured values" of 'y0'…'y99', each at a time or position distance of 'Xbase' apart. The 'Xbase' value is expressed in seconds for time-related values and in meter for length-related values. The number of points is limited to 100.

In this way, you can, for example, enter reference curves to which the signals measured in the field are then compared. Furthermore, you can add data which is not available as a measuring value to an analysis. Using this function, you can also manually generate text signals and enter different values.

Tip
	If you put at least one of the parameters y0 to y99 (max.) in quotation marks, the entered characters are not used as numerical values but as ASCII characters.
