With this profile, both time and length-based data is recorded in data files. Since this profile type can only be used with ibaQDR and when using a ibaQDR data storage, it is also called a QDR profile.
When adding ibaQDR data storage, two base profiles are automatically created. When using ibaQDR, you may add further QDR profiles if required.
The QDR profiles are not available for signal selection for other types of data storage.

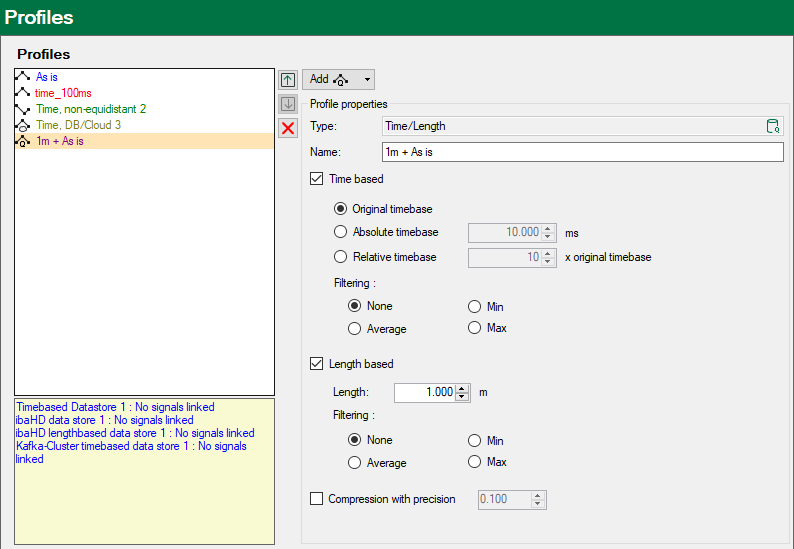

Profile properties
Type
Display of the type with the appropriate types of data storage (symbols)
Name
Enter an unambiguous and understandable name here.
Time-based, length-based
By enabling one of these options or both of them, you determine how the data is written in the data file.
With the time-based recording, the settings are the same as for the “Time” profile.
With the length-based recording, the settings correspond. A length interval can be set here instead of an absolute time interval. The standard deviation is 1 m. You can enter both larger and smaller values.
Other documentation |
|
|---|---|
 |
The profile Time/length is only suitable for ibaQDR data storages. You will find more information about this in the manual for ibaQDR. |
Note |
|
|---|---|
 |
Values are always stored in REAL format as soon as a storage profile is assigned to the signals (except "As is"), even if the original samples are of INT16 format (e.g. from an ibaPADU)! Exception: 32 bit integer values are not converted to floating point values when written to a data file. |
