TP('in','pt*')
Parameters ending with * are only evaluated once at the start of the acquisition..
Description
Pulse Timer. The output is switched on for 'PT' seconds after rising edge at the 'IN' input.
Tip. |
|
|---|---|
 |
Another rising edge during the output pulse does not extend the output pulse and does not restart the pulse. |
Example
Generating a 0.5 second pulse from a random signal
Solution

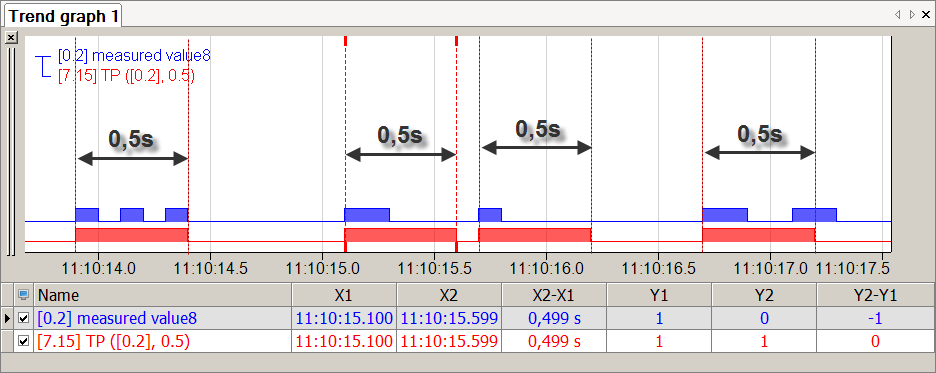

In the figure below the blue bar shows the measured value and the red bar shows the output value in 0.5 second pulses.
