ExtendPulse('Input','Time*')
Parameters ending with * are only evaluated once at the start of the acquisition.
Description
This function extends a pulse on 'Input' to the minimum length of 'Time' seconds. A further rising edge on 'Input' restarts the time.
Example
Extending the pulses of a measured value to a minimum length of 0.3.
Solution

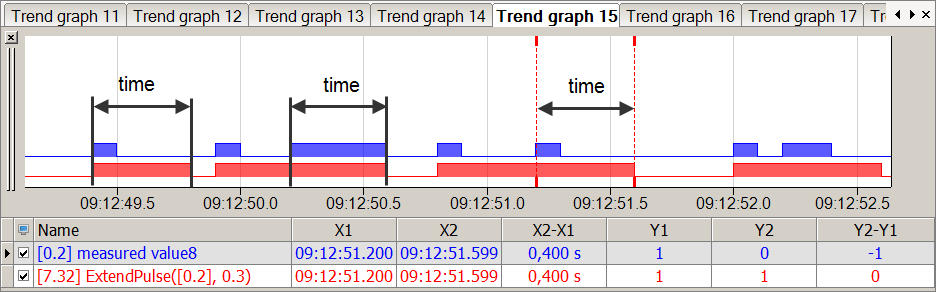

In the figure below the blue bar shows the measured value and the red bar shows the extended pulses of the measured value.
Note |
|
|---|---|
 |
By switching the edges in the sampling grid, the graphic presentation and calculation of the minimum length can be one sample above the minimum length specified under 'Time'. |
