DWORD('Low','High')
Arguments
|
'Low' |
16 bit integer: Word |
|
|
'High' |
16 bit integer: Word |
Description
This function returns the 32 bit integer DWORD consisting of the int16 WORDS ‘Low’ and ‘High.’
Example
Calculating two DWORDS from a simple 0 and 1 combination of 'Low' and 'High'.
|
from int16 WORDS compound DWORD |
||||
|
DWORD('Low','High') |
int16 'High' |
int16 'Low' |
Conv. |
Dec. |
|
DWORD(0, 1) |
0000 0000 0000 0001 |
0000 0000 0000 0000 |
216 |
65536 |
|
DWORD(1, 0) |
0000 0000 0000 0000 |
0000 0000 0000 0001 |
20 |
1 |
Solution

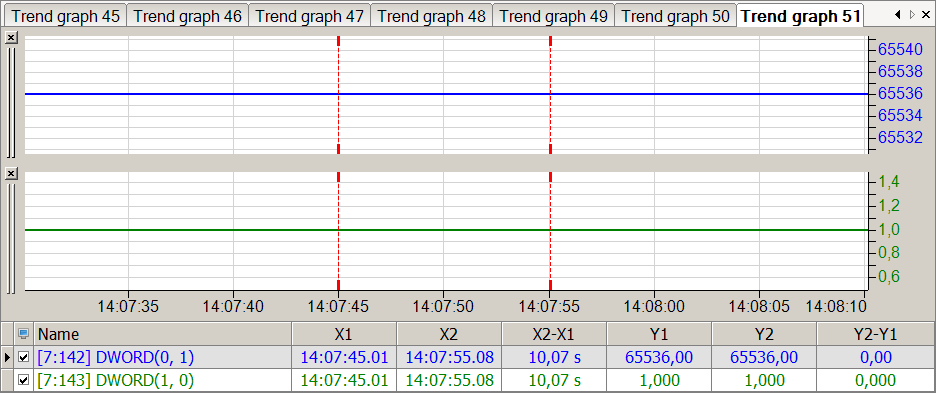

The figure below shows the calculation of two simple DWORDS.
