Add('Expression', 'Enable', 'Reset=0')
Arguments
|
'Expression' |
Analog input signal or expression |
|
|
'Enable' |
Digital input signal or expression; 'Enable' = 1 enables the addition |
|
|
'Reset' |
Optional parameter (default = 0) to stop and restart the calculation: |
|
|
' Reset' = 0 |
Perform calculation |
|
|
' Reset' = 1 |
Stop calculation and set result to 0 |
|
Description
This function adds the value of ‘Expression’ and its own actual value every cycle if ‘Enable’ = TRUE or 1. If ‘Enable’ = FALSE or 0, the last actual value will be held. ‘Reset’ = TRUE or 1 resets the actual value to 0.

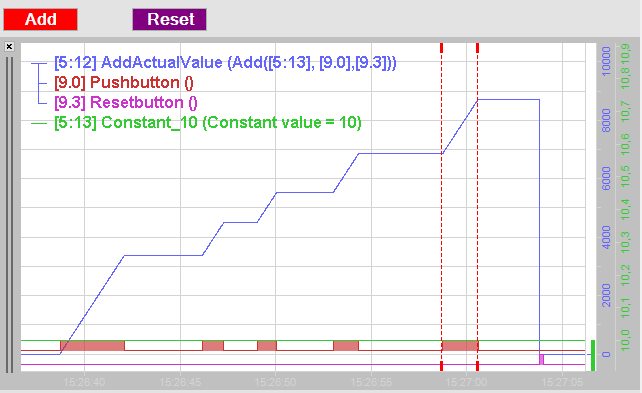

Example
Each time a pushbutton is pressed, an analog value should be increased by 10 every cycle. With a reset-pushbutton the value should be reset to 0.
Solution
