Description

The control network LAN ADMAP is a network of the CIE integrated control system from Toshiba, enabling a free communication with connected TOSDIC-CIE. The hardware interface to the ADMAP network is the JAMI1 board from Toshiba. It provides the computer access to the ADMAP legacy network (ADMAP-5M bus), which is a redundant network. ibaPDA only supports the scan transmission protocol and the ADMAP-5M bus.
Interface configuration

The interface Toshiba ADMAP JAMI1 only shows status and diagnostic information. No settings required at this stage.

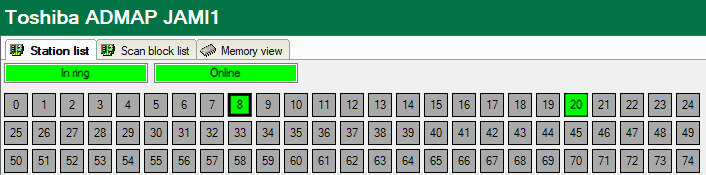

"Station list" and "Scan block list" tabs

"In ring" and "Online" indications

The first two indications give information on whether the card itself is connected to the ring or online. If the card is online, all data written to the card will be transferred to other stations in the ring. The card is then automatically online when booting the computer.

"Station" field

Below, you will find a field with 256 boxes. Each box stands for a station in the ADMAP network and gives information on its individual status:

  • Gray: station is not connected

  • Red: station is connected and in standby mode

  • Green: station is connected and in online mode

  • Thick border: station corresponds to JAMI1 module of ibaPDA computer (like no. 8 in the fig. above)

Scan block list

The "Scan block list" tab shows the scan blocks. 1024 boxes are displayed. Each of them corresponds to a scan block and shows the current status of the block.

  • Gray: scan block is damaged

  • Red: scan block is damaged while ibaPDA is reading this block

  • Green: Green: scan block is intact A scan block is intact when there is a talker for this block, i.e. when station is writing to that block.

  • Thick border: ibaPDA is currently reading this block
Available modules

  • Common memory; 0 to 1000 analog signals and 0 to 1000 digital signals (default 32/32)

  • Scan block; 0 to 1000 analog signals and 0 to 1000 digital signals (default 32/32)
Product name

ibaPDA-Interface-Toshiba-ADMAP JAMI1
