Export of single modules is possible. If there is no need to export an entire I/O configuration, you can export a single module. Just right-click on the module in the I/O Manager tree and select Export from the context menu. In case of modules and sub-ordinated sub-modules, the export consists either of the main module and all sub-modules or of the sub-module only, depending on your previously selected node.

By default, the file name of the export file is Module Name (Module No.).txt.

In the example below, on the left side, the ibaBM-DPM-S, Sniffer, S7 Request modules and two Active slave modules are exported. The export on the right side includes just the Sniffer module.

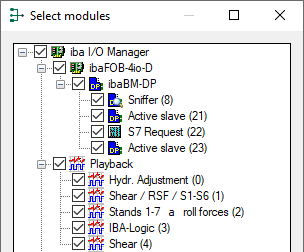

If you call up the export function on the link or interface level, you first see a dialog in which you can deselect modules that you do not wish to export.

A function to export modules is also available via the Export button in the I/O Manager toolbar. To do this, click Export modules to text file.

A window opens in which you can deselect modules that you do not wish to export.
