Devices of type ibaNet750-BM and ibaNet750-BM-D are used for connecting to WAGO I/O system 750. With the help of the device developed by iba and WAGO/Beckhoff, you can access a wide range of input/output terminals from WAGO/Beckhoff. The ibaNet750 device is connected to the K bus of the WAGO system as a head module and transmits the measured data to ibaPDA via a fiber optic connection and the ibaFOB card. A variety of different input and output terminals can be connected.
The output signals are configured in the outputs tab.
For more information see Outputs.
Other documentation |
|
|---|---|
 |
A detailed description of the modules and their configuration can be found in the corresponding device manual. |
Head modules
|
Module name |
Device |
ibaFOB |
Comment |
Manual |
|---|---|---|---|---|
|
ibaNet750-BM |
ibaNet750-BM |
-S, -X, -D |
Max. 32 DI+32DO+32AI+32AO 3 Mbit Acquisition rate1 kHz Device no longer available |
ibaNet750-BM |
|
ibaNet750-BM-D |
ibaNet750-BM-D |
-S, -X, -D |
Max. 255 WAGO terminals Max. 2048 bytes via K bus 3Mbit, 32Mbit, 32Mbit Flex Acquisition rate up to 40 kHz Automatic detection of connected terminals Can be configured as an ibaNet750-BM module (backward compatible) |
ibaNet750-BM-D |
Note |
|
|---|---|
 |
If you want to operate an ibaNet750-BM-D device in 3 Mbit mode, then you have to select the ibaNet750-BM module type in the I/O Manager. |
Terminals
After an ibaNet750 module has been added to the configuration, the required terminals should be selected in the next step. You have several options for adding terminals.
Adding connected devices
If you have connected device to the ibaPDA interface, right-click on the corresponding link (connector) in the tree structure beneath the data interface. Select Autodetect from the context menu.
The system automatically detects the new device and adds the corresponding modules and signals.
Right-click on module in the tree structure of the I/O Manager

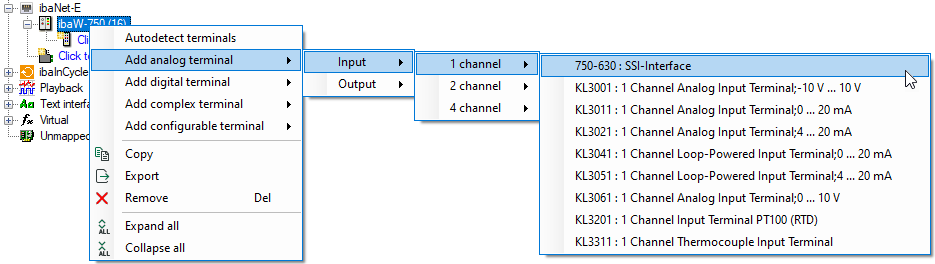

Open the context menu via right-click on the ibaNet750 module in the tree structure. A multi-level submenu helps you selecting the available terminals.
Via the Click to add terminal… command in the tree structure of the I/O Manager
-
To add further terminals to the ibaNet750-BM/-BM-D module, click on the Click to add terminal command below the module.
-

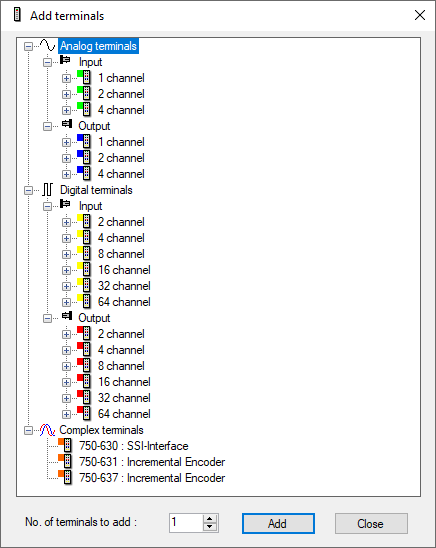

Add the desired terminals, either by double-clicking on the terminal or by clicking the <Add> button.If you want to add several terminals of the same type, you can first enter the number of terminals to be added and then click <Add>.
The corresponding signals are added to the signal lists of the module according to the terminal type.
-
Close the dialog with <Close>.
Not all of the WAGO terminal range can be used. Contact iba if in doubt. This also applies to the compatible, in principle, modules of Beckhoff.
