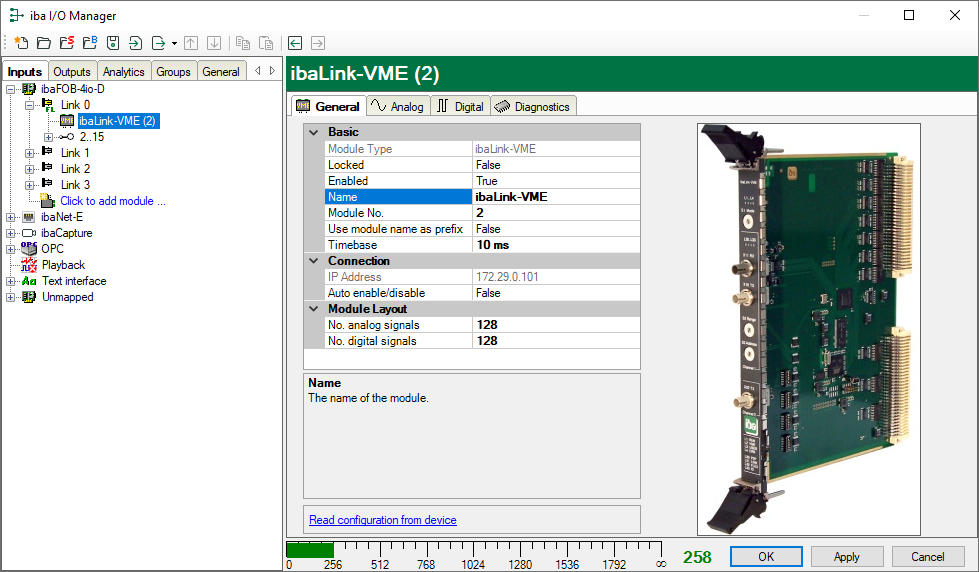

Basic settings

For a description of the basic settings see Common and general module settings.

Time base

Specifies the acquisition timebase used for ibaLink-VME: You can set smaller times here as the general acquisition timebase; cycles up to 25 µs (depending on the number of signals) are possible. All signals of the module will be sampled on this time base.
Module structure

Number of analog signals

Set the number of analog signals for this module.

Number of digital signals

Set the number of digital signals for this module.
Connection

IP address

IP address for the ibaFlex communication of the device (not changeable)

Enable/disable automatically

If TRUE then the acquisition starts even if a device is missing.
More functions

Write configuration to device

Transmits the current configuration to the device.

Read configuration from device

Reads the most recently stored configuration from the device.

Modified settings are applied by clicking on <OK> or <Apply>.
